MCP78S

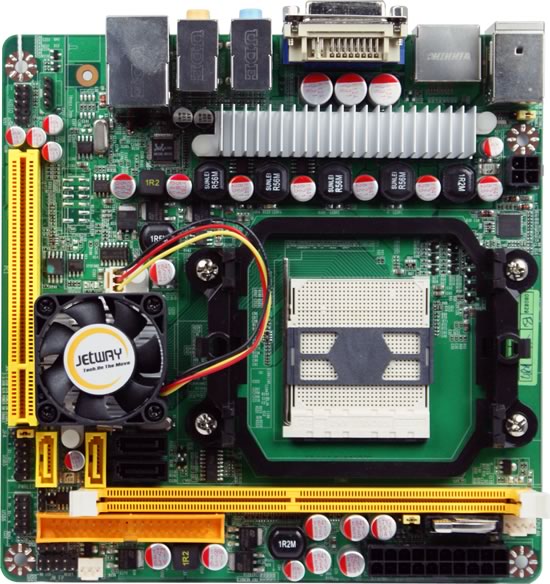

NC61-LF

NVIDIA GF-8200(MCP78S) Chipset Support Socket AM2+ Quad core Opteron™ & Phenom™ Integrated Geforce 8200 GFX Core processor Advanced 5-Phase PWM Design Solid Polymer, long life capacitors Support 4 Serial ATA2 Devices with RAID 0,1,10,5,JBOD Support 1080i and 1080p and HDCP Support Dual Display and rotate Display Support Microsoft DirectX 10 Support h.264, VC1 and Mpeg2 video decode Support Blu-ray DVD playback Supports Gigabit LAN & DVI port Remide customer CPU power consumption <=65W Integrated ALC883 HD Audio CODEC with 8.0 CH Mini-ITX Form Factor(170mm x 172mm)
Overview
CPU Socket AM2 HTT 3000 MHz AMD® Opteron™ With Hyper Transport Technology Compatible with 64-bit Dual Core AMD® Athlon™64 X2 Processors Suggest CPU power consumption <= 65W Chipset NVIDIA GF-8200 (MCP78S) single chipset Graphics NVIDIA Geforce 8200(Share Memory Size: 16/32/64/128/256/512MB) Hyper Transport Technology HT 3.0 Memory 1*240-pin DIMM Sockets Supports DDR2 1066/800MHz non-ECC ,un-buffered memory Max. 2GB Expansion Slots 1 * 32-bit PCI slots Storage Embedded MCP78S Chipset 4 * Serial ATA2 3Gb/s connectors Supports HDDs with RAID 0,1,10, 5,JBOD functions 1 * Ultra DMA 100/66 IDE connector Audio Realtek ALC883 8-Channel HD Audio CODEC w SPIF in and out Ethernet LAN Realtek RTL8111C PCI-E Gigabit LAN USB Embedded 8 * USB 2.0/1.1 Special Features Advanced Power Design that supports the latest Socket-AM2+ CPU “IMAGE IT!” System Backup Software and “ProMagicPLUS!” System Recovery System Support ACPI S3 Support CPU Smart Fan & DC Fan Rear Panel I / O 4 * USB 2.0/1.1 ports 1 * PS/2 Mouse & Keyboard Combined connector 1 * RJ-45 LAN port 2 * Audio I/O ports 1 * VGA port 1 * DVI port 2 * e-SATA ports Internal I / O 2 * USB 2.0/1.1 headers for 4 USB 2.0 ports CPU / Chassis Fan connectors; 1 * 4-pin ATX 12V Power connector 1 * 20-pin ATX Power connector CD / AUX Audio in&1 * Serial Port header BIOS Award 8MB SPI Flash ROM Form Factor Mini-ITX Form Factor(170mmx172mm)


Driver Type Version size Description Date Download Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008/8/28 Download Link Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008/8/28 Download Link LAN   11M OnBboard Realtek PCI-E Lan Driver

os: Windows 98SE , 2000 , Windows XP , VISTA

2008/8/27 Download Link Other1   11M Onboard HDMI Sound Driver

os: Window 2000/XP/2003

2008/7/23 Download Link Raid   3M Onboard Raid driver

os: Windows 2000/XP/2003

2008/7/23 Download Link Chipset   121M Nvidia MCP72_78 Chipset Driver

os: Windows VISTA 64bit

2008/7/23 Download Link Chipset   104M Nvidia MCP72_78 Chipset Driver

os: Windows VISTA 32 bit

2008/7/23 Download Link Chipset   93M Nvidia MCP72_78 Chipset Driver

os: Windows XP 64 bit , Windows 2003 64 Bit

2008/7/23 Download Link Chipset   118M Nvidia MCP72_78 Chipset Driver

os: Windows 2000 , Windows XP 32 bit , Windows 2003

2008/7/23 Download Link

Manual Type Version size Description Date Download Manual 1.0 586KB

Manual(English)

2008/10/24 Download Link
