780G

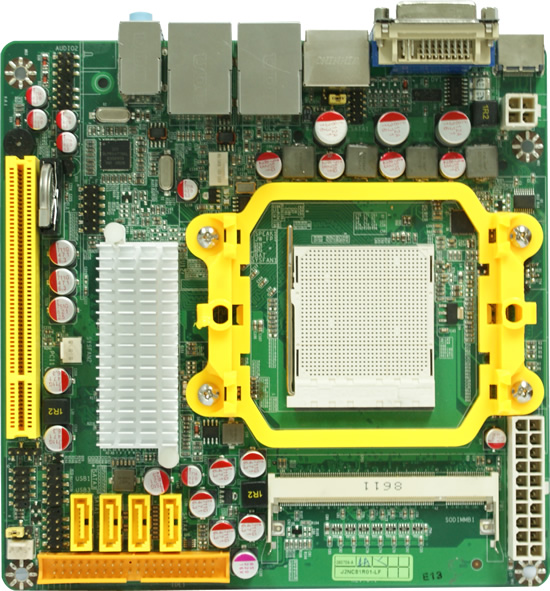

NC81-LF

AMD 780G Chipset + SB700 Chipset Support Socket AM2+ Quad core Opteron™ & Phenom™ Integrated ATI HD 3200 Chipset Advanced 3+1 PWM Design Solid Polymer, long life capacitors Support 4 Serial ATA2 Devices with RAID 0,1,10 Support 1080i and 1080p and HDCP Support Microsoft DirectX 10 Support H.264, VC1 and Mpeg-2 video decode Support Blu-ray playback Support DVI/HDMI Output Support Wi-Fi (Wi-Fi Connector Ready) Supports 2 X Gigabit LAN Integrated ALC662 HD Audio CODEC with 6.0 CH Onboard DDR2 128MB side port memory ITX Form Factor(17cm x 17cm)
Overview
CPU Socket AM2 HT 3.0 AMD® Opteron™ With Hyper Transport Technology Compatible with 64-bit Dual Core AMD® Athlon™64 X2 Processors Chipset AMD 780G Chipset + SB700 Chipset Memory 2 * SODIMM Sockets for un-buffered Dual Channel DDR2 800 SDRAM up to 4 GB Expansion Slots 1 * 32-bit PCI slots Storage

Embedded SB700 Chipset

4 * Serial ATA2 3Gb/s connectors Supports HDDs with RAID 0, 1,10 functions 1 * Ultra DMA 133 / 100 / 66 IDE connector Audio Realtek ALC662 6-Channel HD Audio CODEC w/SPDIF_OUT Ethernet LAN Realtek RTL8111C PCI LAN chip for Gigabit Ethernet LAN Realtek RTL8111C PCI-E LAN chip for Gigabit Ethernet LAN USB Embedded 8 * USB 2.0/1.1 Special Features Advanced Power Design that supports the latest Socket-AM2+ CPU “IMAGE IT!” System Backup Software and “ProMagicPLUS!” System Recovery System Rear Panel I / O 4 * USB 2.0/1.1 ports 2 * RJ-45 ports 2 * e-SATA ports 1 * Audio I / O ports 1 * VGA port 1 * DVI port 1 * HDMI port Internal I / O 2 * USB 2.0/1.1 headers for 4 USB 2.0 ports CPU / Chassis Fan connectors; 1 * 4-pin ATX 12V Power connector 1 * 20-pin ATX Power connector 1 * COM header 1 * Serial Port header 1 *12-PIN Wi-Fi header BIOS Award 8MB SPI Flash ROM Form Factor Mini ITX Form Factor(17cmx17cm)

BIOS Type Version size Description Date Download BIOS A03 1MB

Update CPU code from AGESA 3.1.7.0 to AGESA 3.3.0.0.

2008/11/10 Download Link BIOS A02 1MB

To solve the problem that motherboard only has 6MB sideport when checking with GPU-Z under OS system.

2008/10/15 Download Link
Driver Type Version size Description Date Download Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008/8/28 Download Link Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008/8/28 Download Link LAN   11M OnBboard Realtek PCI-E Lan Driver

os: Windows 98SE , 2000 , Windows XP , VISTA

2008/8/27 Download Link Other1   4.7M SYSTEM GUARD

os: Windows XP

2008/2/15 Download Link Raid   527K Onboard Raid driver

os: Windows XP

2008/2/15 Download Link Chipset   141M ATI RS780 Chipset Driver

os: Windows XP 32/64 bit , Windows 2003 32/64bit

2008/2/15 Download Link Chipset   108M ATI RS780 Chipset Driver

os: Windows VISTA

2008/2/15 Download Link

Manual Type Version size Description Date Download Manual 1.0 504KB   2008/9/16 Download Link
