nForce 550 Series

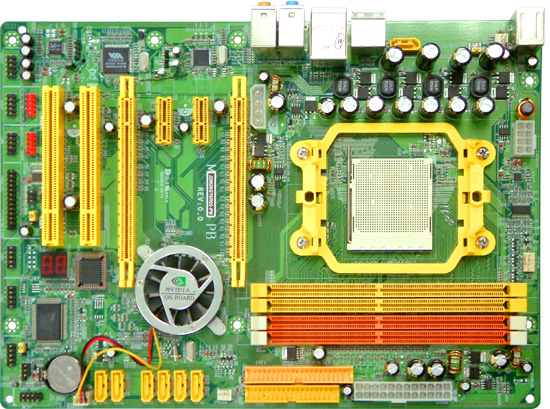

M25GT6

NVIDIA nForceTM 550 MCP Chipset . Support Socket AM2 64-bit Dual core AMD AthlonTM 64 X2 processor. Support HTT 1000MHz. Embedded OC-CON Capacitors. Dual Channel DDR2 800 Memory DIMMs Supported. Support 6 Serial ATA2 Devices with RAID 0.1.0+1. Support NV Firewall Gigabit LAN Supported. Azalia 8 Channel Audio CODEC. CPU Vcore 7-Shift. ATX Form Factor.
Socket AM2 64-bit AMD Athlon 64 Processor with HyperTransport  Technology AMD64, a revolutionary technology allowing the processor to run 32-bit applications at full speed while enabling a new generation of powerful 64-bit software applications. HyperTransport technology can increase overall system performance by removing I/O bottlenecks, increasing system bandwidth, and reducing system latency.   NVIDIA nForce4  550 MCP / PCI Express MCPs for AMD Platforms NVIDIA nForce4 based PCs feature the latest PCI-Express  bus technology and deliver high performance, single-chip, low latency architecture of the NVIDIA nForce550 MCPs offer one of the industry,s advanced core-logic solutions with qualified performance and the latest technologies-PCI Express, secure high-speed networking, and high-performance storage-and ensures that your PC stays ready for the newest games, future applications, and next-generation PC specifications.   CPU Thermal Throttling / The Anti-superheated CPU protection Technology To prevent the increasing heat from damaging of CPU while the activation of the Bi-turbo technology, the CPU Thermal Throttling Technology will make CPU be idling from 87.5% to 12.5% by manually preset CPU operating temperature from 40oC to 90oC. When the system senses the climbing operating temperature of CPU over the value preset, CPU Thermal Throttling Technology will narrow the operating bandwidth of CPU actively to low down the temperature to the value preset as the perfect protection system of hardware dynamic over-clocking technology.   Pro Magic Plus System Recovery Software Embedded Restore important data back right away, allowing your system to be operated under a safe environment. This amazing software not only provides convenient instant restoration, but also brings data back to the preferred state at any specific time point as you wish. Moreover, it combines several other functions such as anti-virus, backup software, uninstall software, multi-booting etc. to satisfy your needs of all sorts of system protections. No more worries on new virus or system failure!   PCI Express Buses The PCI Express x16 graphics delivers up to 4 GB/s per direction, 3.5 times more bandwidth than AGP8X and up to 8 GB/s concurrent bandwidth. PCI Express x1 I/O offers 500 MB/s concurrently, over 3.5 times more bandwidth than PCI at 133 MB/s, tackling the most demanding multimedia tasks nowadays.   CPU Vcore 7-Shift / Shift_to the scalabilities and flexibilities The adjustable voltage for CPU Vcore can be upgraded in thirty-one  stages for the precisely hardware dynamic over-clocking of demanding computing performance.   Advanced Thermal Solution System for PWM "IY COOL" function is the unique thermal solution for PWM. The special and cost-effective design can be the exhaust valve of exhausting the heat generated by PWM effectively. With the small but quiet active 55mm cooling fan to decrease the temperature of PWM, we can extend the MTBF of the capacitors up to 30% and get more stability of the system working under the higher and higher frequency in the future.

Specification Performance List                                   The following performance data list is the testing result of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users (the different Hardware & Software configuration will result in different benchmark testing results.) Performance Test Report CPU:                       AMD K8 Athlon 64 3500+ (AM2 / 512K cache) DRAM:                          ADATA ( ELPIDA E5108AE ) DDR2-667 512M X 2 1G Memory (Dual channel) VGA Card: Geforce4 6800GT 128M (1024X768X32bit Color) Hard Disk Driver:   Seagate Barracude 7200.7 SATA150 BIOS:                      BIOS Load Optimal default OS:                             Windows XP Professional (SERVICE PACK 2) 3D Mark 2001SE 19003 3D Mark 2003 12739 3D Mark 2005 5495 3D Mark 2006 2336 AQUAMRK3 (GFX / CPU) 63864 ( 9984 / 8859 )  PCMark2004  System / CPU / Memory 4171 / 4107 / 5186  Graph / HDD 5343 / 4612  Content Creation Winstone 2004 33.2  Business Winstone 2004 25.8  Winbench 99 V2.0:  Business/Hi-end Disk Winmark99 19600 / 43200  Business/Hi-end Graphic Winmark 1290 / 2070 SISMark 2004 : SISMark Rating (Internet Content Creation / Office Productivity) SISMark 2004 184 ( 196 / 172 ) 3D Creation / 2D Creation 181 / 241 / web publication 172 Communication / Document Creation 178 / 184 /Data Analysis 155 SISOFT Sandra 2005 :1.CPU Arithmetic Benchmark 2.Memory bandwidth Benchmark 3.CPU Multi-Media Benchmark 1.Dhrystone ALU MIPS 9816 Whetstone FPU iSSE2 FLOPS 4419 2.Int/Float Buffered iSSE2 MB/S 5612 / 5560 3.Integer/Floating-Point iSSE2 IT/S 20833 / 22456 UT2003 Benchmark FPS 241.61 / 85.46 DOOM3 FPS 88.7 Super Pi (1M) Second 42s CPU System / MEMORY / CPU Mhz


BIOS
Type Version size Description Date Download BIOS A09 512KB

Jetway has phased out this product.Please ask Jetway FAE for BIOS download when there is need.

2008-1-22

Driver
Type Version size Description Date Download Sound   40M OnBoard ALC Codec Sound Driver

os: Windows 2000 , Windows XP , VISTA

2007-5-23 Download Link Chipset   24M NF4 Chipset Driver For VISTA

os: Windows VISTA 64bit

2007-4-10 Download Link Chipset   23M NF4 Chipset Driver For VISTA

os: Windows VISTA 32 bit

2007-4-10 Download Link Chipset   35M NF4 Chipset Driver

os: Windows XP 64bit

2006-7-7 Download Link Chipset   34M NF4 Chipset Driver

os: Winfwos 2003

2006-7-7 Download Link Chipset   37M NF4 Chipset Driver

os: Windows 2000 , Windows XP 32 bit

2006-7-7 Download Link Raid   966K NF4 Raid Driver

os: Winodws 2000 ,Windows XP 32 bit

2006-7-7 Download Link

Manual
Type Version size Description Date Download Manual 1.0 1.7M NVIDIA nForce 550 MCP Platform Processor Chipset M/B For Socket AM2 64-bit Dual Core AMD Processor 2007-3-12 Download Link

 Utility
Type Version size Description Date Download Utilities 8.83 32KB BIOS Update Utilities 2007-7-29 Download Link
