nForce 520 Series

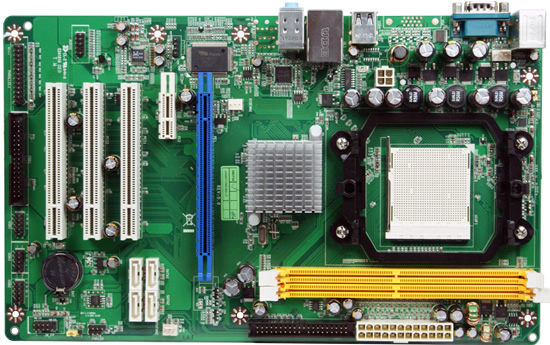

M26GTC

NVIDIA nForce 520 (MCP65S) Chipset AM3 CPU ready Socket AM2 64-bit dual core AMD Athlon™64 X2 processor Support HTT 1000MHz Supports Dual Channel DDR2 800 Integrated Serial ATA2 3Gb/s with RAID function Integrated Gigabit LAN Integrated ALC662 HD Audio CODEC with 6.0 CH CPU Vcore 7-Shift ATX Form Factor
Specification CPU

Supports AMD Socket AM2:

Athlon 64 X2/Athlon 64 FX / Athlon 64 / Sempron processors Chipset NVIDIA nForce 520 (MCP65S) Chipset Hyper Transport Bus HT1000MHz Memory Dual Channel DDR2 memory technology 2 * 240-pin DDR2 DIMM slots Supports DDR2 800 non-ECC ,un-buffered memory Max.4GB Expansion Slots 3 * 32-bit PCI Slots 1 * PCI Express x16 1 * PCI Express x1 Storage

NVIDIA nForce™520 (MCP65S) Chipset:

4 * Serial ATA2 3Gb/s connectors Supports HDDs with RAID 0, 1,0+1 functions 1 * Ultra DMA 133 / 100 / 66 IDE connector Audio Realtek ALC662 6-Channel HD Audio CODEC Ethernet LAN Realtek RTL8111C PCI-E Gigabit NIC USB Embedded 10 * USB 2.0/1.1 Special Features Advanced Power Design that supports the latest Socket-AM2 K8 CPU “IMAGE IT!” System Backup Software and “ProMagicPLUS!” System Recovery System Rear Panel I / O 4 * USB 2.0/1.1 ports 1 * PS/2 mouse port 1 * PS/2 keyboard port 1 * COM port 1 * RJ-45 port 1 * Audio I/O Internal I / O 3 * USB 2.0/1.1 headers for 6 USB 2.0/1.1 ports CPU / Chassis Fan connectors 1 * 8-pin ATX 12V Power connector 1 * 24-pin ATX Power connector 1 * Serial Port of 9-pin block CD / AUX Audio in 1 * HDMI_SPDIF header 1 * Parallel header 1 * Ultra DMA 133 / 100 / 66 IDE connector 1 * Floppy connector BIOS Award 8MB SPI Flash ROM Form Factor ATX Form Factor

BIOS
Type Version size Description Date Download BIOS A02 1MB

Fix the system may boot abnormally when plug HD Audio cable.

2008-10-28 Download Link BIOS A01 1MB

First release for production.

2008-8-20 Download Link


Driver
Type Version size Description Date Download LAN   11M OnBboard Realtek PCI-E Lan Driver

os: Windows 98 , Windows 2000 , Windows XP ,VISTA

2008-8-28 Download Link Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008-8-28 Download Link Chipset   85M Nvidia MCP61 Chipset Driver For VISTA

os: Windows VISTA 64bit

2007-4-10 Download Link Chipset   74.6M Nvidia MCP61 Chipset Driver For VISTA

os: Windows VISTA 32 bit

2007-4-10 Download Link Chipset   96M Nvidia MCP61 Chipset Driver

os: Windows XP 64 bit

2006-9-27 Download Link Monitor   4.8M Hardware Monitoring Program

os: Windows 2000 , Windows XP 32 bit

2006-9-27 Download Link Other1   904K Nvidia Raid DisK

os: Windows 2000 , Windows XP 32 bit

2006-9-27 Download Link Chipset   92M Nvidia MCP61 Chipset Driver

os: Windows 2000 , Windows XP 32 bit

2006-9-27 Download Link

Manual
Type Version size Description Date Download Manual 1.0 2.09MB

Manual

2008-8-19 Download Link
