nForce 520 Series

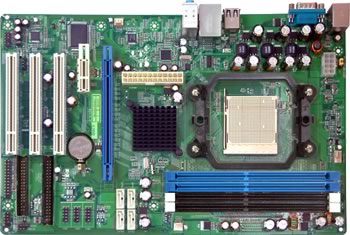

M26GTA-DS1

NVIDIA nForce™520 (MCP65S) Chipset Support Socket AM2+ AMD Phenom™ Processor Socket AM2 64-bit dual core AMD Athlon™64 X2 processor Support HTT 1000MHz Dual Channel DDR2 800 Memory DIMMs Supported Support 4 Serial ATA2 Devices with RAID 0, 1 and 0+1 10/100 LAN Supported AC'97 6-Channel Audio CODEC CPU Vcore 7-Shift ATX Form Factor

Socket AM2 64-bit AMD Athlon™ 64 Processor with HyperTransport™ Technology
AMD64, a revolutionary technology allowing the processor to run 32-bit applications at full speed while enabling a new generation of powerful 64-bit software applications. HyperTransport™ technology can increase overall system performance by removing I/O bottlenecks, increasing system bandwidth, and reducing system latency.

NVIDIA nForce™520 (MCP65S)/ PCI Express MCPs for AMD Platforms
NVIDIA nForce520 based PCs feature the latest PCI-Express™ bus technology and deliver high performance, single-chip, low latency architecture of the NVIDIA nForce520 MCPs offer one of the industryбжs advanced core-logic solutions with qualified performance and the latest technologiesбXPCI Express, secure high-speed networking, and high-performance storageбXand ensures that your PC stays ready for the newest games, future applications, and next-generation PC specifications

CPU Thermal Throttling / The Anti-superheated CPU protection Technology
To prevent the increasing heat from damaging of CPU, the CPU Thermal Throttling Technology will make CPU be idling from 87.5% to 12.5% by manually preset CPU operating temperature from 40вJ to 90вJ. When the system senses the climbing operating temperature of CPU over the value preset, CPU Thermal Throttling Technology will narrow the operating bandwidth of CPU actively to low down the temperature to the value preset as the perfect protection system of hardware dynamic over-clocking technology.

Pro Magic Plus System Recovery Software Embedded
Restore important data back right away, allowing your system to be operated under a safe environment. This amazing software not only provides convenient instant restoration, but also brings data back to the preferred state at any specific time point as you wish. Moreover, it combines several other functions such as anti-virus, backup software, uninstall software, multi-booting etc. to satisfy your needs of all sorts of system protections. No more worries on new virus or system failure!

PCI Express Buses
The PCI Express x16 graphics delivers up to 4 GB/s per direction, 3.5 times more bandwidth than AGP8X and up to 8 GB/s concurrent bandwidth. PCI Express x1 I/O offers 500 MB/s concurrently, over 3.5 times more bandwidth than PCI at 133 MB/s, tackling the most demanding multimedia tasks nowadays.

CPU Vcore 7-Shift / Shift to the scalabilities and flexibilities
The adjustable voltage for CPU Vcore can be upgraded in thirty-one stages for the precisely hardware dynamic over-clocking of demanding computing performance.

 Specification CPU Socket AM2+ AMD Phenom™ Processor ,Socket AM2 HTT 1000 MHz AMD® Athlon™64 With HyperTransport Technology Compatible with 64-bit Dual Core AMD® Athlon™64 X2 Processor Chipset nForce™520 (MCP65S) Single Chipset Memory 4 * 240-pin DIMM Sockets for unbuffered Dual DDR2 800 SDRAM up to 8 GB Expansion Slots 3 * 32-bit PCI Slots / 1*PCI EXPRESS x1/ 1 * PCI EXPRESS x16 Slots Storage 2 * Ultra DMA 133 / 100 / 66 IDE Devices Support Embedded nForce™520D MCP Chipset Supports 4 Serial ATA2 Devices with RAID Functions. Audio Realtek ALC662 ACбж97 6-Channel Audio CODEC Ethernet LAN Realtek RTL8201CL 10/ 100 LAN PHY USB Embedded 10 * High Speed USB @ 480 Mbit / s Special Features Advanced Power Design that supports the latest Socket-AM2 K8 CPU бзIMAGE IT!би System Backup Software and бзProMagicPLUS!би System Recovery System Rear Panel I / O 4 * High Speed USB Connectors @ 480 Mbit / s 1 * PS / 2 Mouse & 1 * PS/2 Keyboard 1 * RJ45 Connector 1* COM Port 1 * Audio I / O Internal I / O 3 * High Speed USB Connectors @ 480 Mbit / s for 6 USB 2.0 Ports CPU / Chassis Fan Connectors; 1 * 12V 8-pin ATX Power Connector and 1 * 24-pin ATX Power Connector CD / AUX Audio in 1 * SPDIF Header 1 * Parallel Header BIOS Award 8 MB SPI Flash ROM Form Factor ATX Form Factor

 Driver
Type Version size Description Date Download Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008-8-28 Download Link Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008-8-28 Download Link Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008-8-28 Download Link LAN   19M OnBboard Marvell Lan Driver

os: Windows 2000/XP / VISTA 32 bit / 64bit

2007-9-21 Download Link LAN   19M OnBboard Marvell Lan Driver

os: Windows 2000/XP / VISTA 32 bit / 64bit

2007-9-21 Download Link Chipset   83M Nvidia C55 + MCP 68 Chipset Driver

os: Windows VISTA 64bit

2007-5-22 Download Link Chipset   70M Nvidia C55 + MCP 68 Chipset Driver

os: Windows VISTA 32 bit

2007-5-22 Download Link Chipset   93M Nvidia C55 + MCP 68 Chipset Driver

os: Windows XP 64 bit , Windows 2003 64 Bit

2007-5-22 Download Link Chipset   82M Nvidia C55 + MCP 68 Chipset Driver

os: Windows 2000 , Windows XP 32 bit , Windows 2003

2007-5-22 Download Link Chipset   83M Nvidia C55 + MCP 68 Chipset Driver

os: Windows VISTA 64bit

2007-5-22 Download Link Chipset   70M Nvidia C55 + MCP 68 Chipset Driver

os: Windows VISTA 32 bit

2007-5-22 Download Link Chipset   93M Nvidia C55 + MCP 68 Chipset Driver

os: Windows XP 64 bit , Windows 2003 64 Bit

2007-5-22 Download Link Chipset   82M Nvidia C55 + MCP 68 Chipset Driver

os: Windows 2000 , Windows XP 32 bit , Windows 2003

2007-5-22 Download Link

 Manual
Type Version size Description Date Download Manual 2.0 1.74MB

Manual

2008-3-6 Download Link
