nForce 520 Series

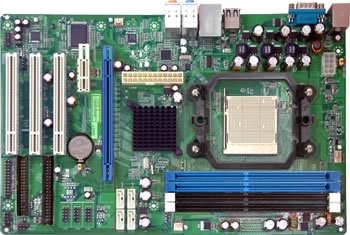

M26GTA-DG1

NVIDIA nForce™520 (MCP65S) Chipset Support Socket AM2+ AMD Phenom™ Processor Socket AM2 64-bit dual core AMD Athlon™64 X2 processor Support HTT 1000MHz Dual Channel DDR2 800 Memory DIMMs Supported Support 4 Serial ATA2 Devices with RAID 0, 1 and 0+1 Gigabit LAN Supported HD 8 Channel Audio CODEC CPU Vcore 7-Shift ATX Form Factor
 Specification CPU Socket AM2+ AMD Phenom™ Processor ,Socket AM2 HTT 1000 MHz AMD® Athlon™64 With HyperTransport Technology Compatible with 64-bit Dual Core AMD® Athlon™64 X2 Processor Chipset nForce™520 (MCP65S) Single Chipset Memory 4 * 240-pin DIMM Sockets for unbuffered Dual DDR2 800 SDRAM up to 8 GB Expansion Slots 3 * 32-bit PCI Slots / 1*PCI EXPRESS x1/ 1 * PCI EXPRESS x16 Slots Storage 2 * Ultra DMA 133 / 100 / 66 IDE Devices Support Embedded nForce™520D MCP Chipset Supports 4 Serial ATA2 Devices with RAID Functions. Audio Realtek ALC883 8-Channel Azalia Audio CODEC Ethernet LAN Marell 88E8056 PCI-E Gigabit NIC USB Embedded 10 * High Speed USB @ 480 Mbit / s Special Features Advanced Power Design that supports the latest Socket-AM2 K8 CPU бзIMAGE IT!би System Backup Software and бзProMagicPLUS!би System Recovery System Rear Panel I / O 4 * High Speed USB Connectors @ 480 Mbit / s 1 * PS / 2 Mouse & 1 * PS/2 Keyboard 1 * RJ45 Connector 1* COM Port 1 * Audio I / O Internal I / O 3 * High Speed USB Connectors @ 480 Mbit / s for 6 USB 2.0 Ports CPU / Chassis Fan Connectors; 1 * 12V 8-pin ATX Power Connector and 1 * 24-pin ATX Power Connector CD / AUX Audio in 1 * SPDIF Header 1 * Parallel Header BIOS Award 8MB SPI Flash ROM Form Factor ATX Form Factor

 BIOS
Type Version size Description Date Download BIOS A03 1MB

To solve the problem that JBAT1 Jumper fail to clear CMOS

2008-6-16 Download Link


 Driver
Type Version size Description Date Download Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008-8-28 Download Link Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008-8-28 Download Link Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008-8-28 Download Link LAN   19M OnBboard Marvell Lan Driver

os: Windows 2000/XP / VISTA 32 bit / 64bit

2007-9-21 Download Link LAN   19M OnBboard Marvell Lan Driver

os: Windows 2000/XP / VISTA 32 bit / 64bit

2007-9-21 Download Link Chipset   83M Nvidia C55 + MCP 68 Chipset Driver

os: Windows VISTA 64bit

2007-5-22 Download Link Chipset   70M Nvidia C55 + MCP 68 Chipset Driver

os: Windows VISTA 32 bit

2007-5-22 Download Link Chipset   93M Nvidia C55 + MCP 68 Chipset Driver

os: Windows XP 64 bit , Windows 2003 64 Bit

2007-5-22 Download Link Chipset   82M Nvidia C55 + MCP 68 Chipset Driver

os: Windows 2000 , Windows XP 32 bit , Windows 2003

2007-5-22 Download Link Chipset   83M Nvidia C55 + MCP 68 Chipset Driver

os: Windows VISTA 64bit

2007-5-22 Download Link Chipset   70M Nvidia C55 + MCP 68 Chipset Driver

os: Windows VISTA 32 bit

2007-5-22 Download Link Chipset   93M Nvidia C55 + MCP 68 Chipset Driver

os: Windows XP 64 bit , Windows 2003 64 Bit

2007-5-22 Download Link Chipset   82M Nvidia C55 + MCP 68 Chipset Driver

os: Windows 2000 , Windows XP 32 bit , Windows 2003

2007-5-22 Download Link

Manual
Type Version size Description Date Download Manual 2.0 1.74MB

Manual

2008-3-6 Download Link
