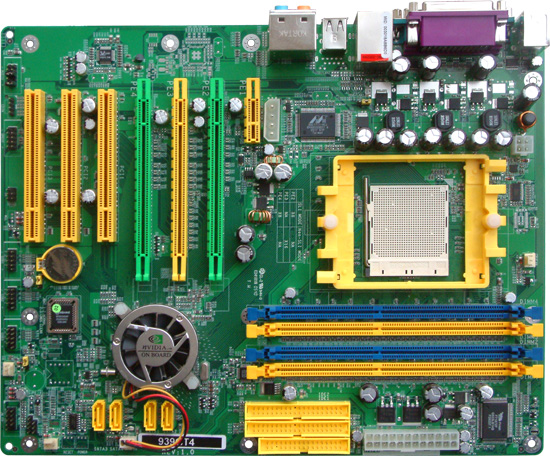

nForce4 SLI

939GT4

Specification SPECIFICATION Processor Socket939 FSB 1000 MHz AMD® Athlon™64 Processor With HyperTransport Technology Chipset nForce™4 MCP Single Chipset nForce™4 MCP Ultra Single Chipset (939GT4-Ultra-G-OC) Memory 4 * 184-pin DIMM Sockets for unbuffered Dual DDR 400 / 333 / 266 SDRAM up to 4 GB Expansion Slot 3 * 32-bit PCI Slots / 1 * PCI EXPRESS x1 / 3 * PCI EXPRESS x16 Storage 4 * Ultra DMA 133 / 100 / 66 / 33 mbedded nForce4 MCP Single Chipset Supports 4 Serial ATA HDDs with RAID Functions. mbedded nForce4 MCP Single Chipset Supports 4 Serial ATA2 HDDs with RAID Functions. (939GT4-Ultra-G-OC) Audio Realtek ALC 6-Channel AC 97бж Audio CODEC Ethernet LAN Marvell 88E1111 10 / 100 / 1000 LAN USB Embedded 8 * High Speed USB @ 480 Mbit / s Special Features Advanced Power Design that supports AMD® Athlon™64 Processor Embedded OC-CON high-polymer solid electrolysis aluminum capacitors IMAGE IT!би System Backup Software and бзProMagicPLUS!би System Recovery System Rear Panel I / O 4 * High Speed USB Connectors @ 480 Mbit / s 1 * Parallel Connector 2 * SerialPort 1 * PS / 2 Mouse & 1 * PS/2 Keyboard 1 * RJ45 Connector 1 * Audio I / O Internal I / O 2 * High Speed USB Connectors @ 480 Mbit / s for 4 USB 2.0 Ports CPU / Chassis Fan Connectors 1 * 12V 4-pin ATX Power Connector and 1 * 24-pin ATX Power Connector D / AUX Audio in BIOS Award 4 MB Flash ROM Form Factor ATX Form Factor
BIOS
Type Version size Description Date Download BIOS       2006-3-1 Download Link

Driver
Type Version size Description Date Download Sound   40M OnBoard ALC Codec Sound Driver

os: Windows 2000 , Windows XP , VISTA

2007-5-23 Download Link Chipset   24M NF4 Chipset Driver For VISTA

os: Windows VISTA 64bit

2007-4-10 Download Link Chipset   23M NF4 Chipset Driver For VISTA

os: Windows VISTA 32 bit

2007-4-10 Download Link Chipset   35M NF4 Chipset Driver

os: Windows XP 64bit

2006-4-4 Download Link Chipset   34M NF4 Chipset Driver

os: Winfwos 2003

2006-4-4 Download Link Chipset   37M NF4 Chipset Driver

os: Windows 2000 , Windows XP 32 bit

2006-4-4 Download Link Raid   966K NF4 Raid Driver

os: Winodws 2000 ,Windows XP 32 bit

2006-4-4 Download Link

 Manual
Type Version size Description Date Download Manual   726K M/B For Socket 939 64-bit & Dual Core Ready AMD Athlon64FX Processor 2006-4-13 Download Link

 Utility
Type Version size Description Date Download Utilities 8.83 32KB BIOS Update Utilities 2006-7-31 Download Link
