nForce4 SLI

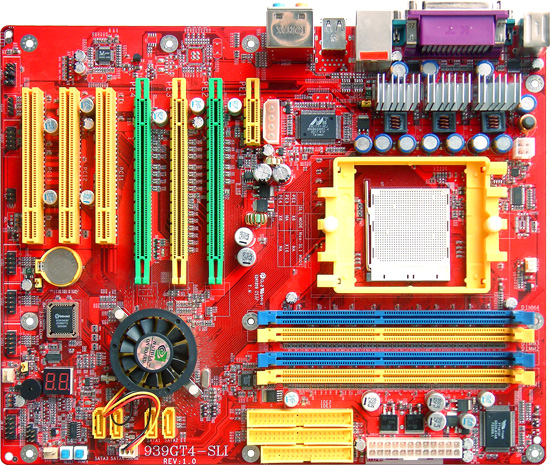

939GT4-SLI

nVidia nForce4 MCP SLI ,Support AMD 939 pin Athlon64 at 1GHz The ultimate enthusiast platform Support DDR400 RAM Support ATA133 Support USB2.0 8 Channel Speaker. some special function for Over-clocking Onboard LAN
64-bit AMD Athlon  64 Processor with HyperTransport Technology

AMD64, a revolutionary technology allowing the processor to run 32-bit applications at full speed while enabling a new generation of powerful 64-bit software applications. HyperTransport technology can increase overall system performance by removing I/O bottlenecks, increasing system bandwidth, and reducing system latency.



NVIDIA nForce  SLI MCP / The ultimate enthusiast platform

NVIDIA nForce SLI MCPs (media and communications processors) offer blistering graphics performance and overall PC performance for both AMD and Intel platforms. With the power of SLI technology you get the ability to connect two NVIDIA SLI-Ready PCI Express graphics cards for mind-blowing gameplay with brilliant and intensive 3D graphics. The unique low-latency architecture of the NVIDIA nForce4 SLI MCPs offers one of the industry best core-logic solution with outstanding performance and the latest technologiesбXSLI, PCI Express, secure high-speed networking, and high-performance storageбXand ensures that your PC stays ready for the newest games, future applications, and next-generation PC specifications.



CPU Thermal Throttling / The Anti-superheated CPU protection

Technology To prevent the increasing heat from damaging of CPU while the activation of the Bi-turbo technology, the CPU Thermal Throttling Technology will make CPU be idling from 87.5% to 12.5% by manually preset CPU operating temperature from 40вJ to 90вJ. When the system senses the climbing operating temperature of CPU over the value preset, CPU Thermal Throttling Technology will narrow the operating bandwidth of CPU actively to low down the temperature to the value preset as the perfect protection system of hardware dynamic over-clocking technology.



Debug Port / The Professional Hardware Monitoring System

Being bugged of abnormal system failure through the tossed and turned nights no more, the embedded Hardware Debug Port offers you the real-time visual system healthy for the demanding usage of computing. No more bugging by unknown system failure and no more time wasted in the first moment of 24-hour nonstopping business computing, the embedded Debug Port will turn you into a well training hardware professional with the seeing system situation.



CPU Smart Fan / The Noise Restrained System

Itбжs never been a good idea to sacrifice the sound effects for gaining the performance you need. CPU Smart Fan Noise Restrained System is the answer to all the noise restrained needed high performance computing system, the system will automatically increase the fan speed when CPU operating loading is high, after the CPU is in normal operating condition, the system will low down the fan speed for the silent operating environment. The system can provide the much longer life cycle for both CPU and the system fans for game use and business requirements.



OC-CON high-polymer solid electrolysis aluminum capacitors embedded

The working temperature is from 55 degrees Centigrade below zero to 125 degrees Centigrade, OC_CON capacitors possess superior physical characteristics that can be while reducing the working temperature between 20 degrees Centigrade each time, intact extension 10 times of effective product operation lives, at not rising degrees Centigrade of working temperatures each time a relative one, life of product decline 10% only too.



7-Shift / Shift_to the scalabilities and flexibilities The adjustable voltage for CPU Vcore can be upgraded in seven stages for the precisely hardware dynamic over-clocking of demanding computing performance.

Specification SPECIFICATION Processor Support Socket939 FSB 1000 MHz t AMD Athlon64 proccessor with HyperTransport Technology Chipset nVIDIA nForce4 MCP SLI Single Chipset Jumpless Support Jumpless Function by BIOS SETUP Let Users More Easier to Change The Frequency Expansion Slot Three 32-bit PCI Bus Master Slots One PCI EXPRESSx16 Slots and Two PCI EXPRESSx8 Slots One PCI EXPRESSx1 Slot System Memory 4 x 184-pin DDR Module Socket support DDR266/DDR333/DDR400 Dual DDR SDRAM up to 4GB System memory. Support Dual Channel On Board Serial ATA Support 4 Serial ATA Ports Support NVIDIA RAID function , RAID0,RAID1,RAID 0+1 Support Serial ATA II up to 3Gb/sec (Max) transfer rate On Board IDE Support 2 X IDE Connectors for up to 4 IDE Drives Support PIO Mode 3 and Mode 4 and Bus Master IDE DMA, Mode 4 Timing for up to 16M Bytes/s Support UTRA DMA-133 Bus Master IDE, Provide faster transfer rate up to 133M Bytes/s Support LS-120 / ZIP Device On Board Dual Giga LAN (optional) 88E8053 & 88E1111 LAN Support 10/100/1000 Mb/sec data transfer rate On Board 3D Audio Software Audio Controller with Onboard 8-Channel CODEC Compliant to AC97бж Support 3D urround & Positioning , Full Duplex On Board Ultra I/O 2 X Serial Ports (16550 Fast UART Compatible) 1 X Parallel Port (EPP and ECP capabilities) 1 X Floppy Disk Connector (Supports 2 Floppy Drivers) 1 X PS2 Mouse Connector 1 X Keybord Cnnector 2 X Three Wire FAN Connector (Include CPU FAN) 1 X LINE IN / LINE OUT / Microphone Connector 2 X Analog Audio CD Music line Connectors (different connector) On Board USB 10 X USB 2.0 Ports Connector Support USB Keyboard & USB Mouse Special Features Advanced Power Design that supports AMD® Athlon™64 Processor Embedded OC-CON high-polymer solid electrolysis aluminum capacitors IMAGE IT!би System Backup Software and бзProMagicPLUS!би System Recovery System Power Saving ACPI/APM Power Management Modem Ring remote wake up RTC Alarm Wake up Support Software Suspend & Power off Wake on LAN For OS Support Power Button Ride (Instant off or Delay 4 second power off) Power Supply Support 24-pin ATX power supply (ATX-PW) Support ATX12V Power Supply BIOS Award BIOS , Support Green function, Plug and Play Function 4MBit Flash ROM Dimension ATX Form Factor with 30.5cm X 24.5cm

BIOS
Type Version size Description Date Download BIOS       2006-3-3 Download Link


Driver
Type Version size Description Date Download Sound   40M OnBoard ALC Codec Sound Driver

os: Windows 2000 , Windows XP , VISTA

2007-5-23 Download Link Chipset   24M NF4 Chipset Driver For VISTA

os: Windows VISTA 64bit

2007-4-10 Download Link Chipset   23M NF4 Chipset Driver For VISTA

os: Windows VISTA 32 bit

2007-4-10 Download Link Chipset   35M NF4 Chipset Driver

os: Windows XP 64bit

2006-4-4 Download Link Chipset   34M NF4 Chipset Driver

os: Winfwos 2003

2006-4-4 Download Link Chipset   37M NF4 Chipset Driver

os: Windows 2000 , Windows XP 32 bit

2006-4-4 Download Link Raid   966K NF4 Raid Driver

os: Winodws 2000 ,Windows XP 32 bit

2006-4-4 Download Link

Manual
Type Version size Description Date Download Manual   726K M/B For Socket 939 64-bit & Dual Core Ready AMD Athlon64FX Processor 2006-4-13 Download Link

Utility
Type Version size Description Date Download Utilities 8.83 32KB BIOS Update Utilities 2006-7-31 Download Link
