nForce3 250GB

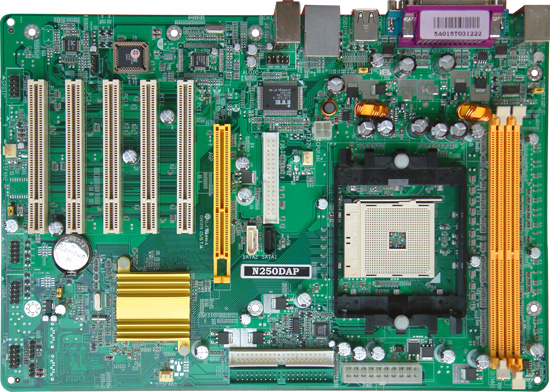

N250DAP-VC

6-Channel AC97 Codec Support Front,Rear,Center-Base Speaker Output. Supports 10/100 Mb/sec data transfer rate. Support 4X/8X AGP VGA Card only. Support 2 Serial ATA port provided 150MB/s (Mas) transfer rate. CPU Support 800MHz F.S.B. Support DDR266/DDR333/DDR400 DRAM Max.2.0GB. ATA133 IDE Connector. USB2.0/ LAN.
Overview

Processor

PC 99 Colorful I/O Ports

Special Function

- 64bit AMD Athlon64,Sempron 754-Pin Package utiliaes Flip-Chip Pin Grid Array package processor, support CPU  800MHz

- 8xUSB2.0 Ports , 2xSerial Ports , 1xParallel Port
- 1xPS/2 Keyboard Port , 1xPS/2 Mouse Port
- Line-in / Line-out /MIC Ports

-ACPI supporting for OS Directed Power Management
- Wake On LAN,Keyboard Power On
- PC Health Monitor CPU temperature,system temperature,System Voltage(Vcore,Vtt,3.3V,5V,12V....),FAN speed
-Magic BIOS UTILITY SUPPORT live Update BIOS Function from web
-DRAM Voltage/ AGP Voltage Minor Adjustable and Over Current/Under Voltage protection
-CPU Over Temperature protection Chipset

- nVIDIA nForce3 250 single Chipset

Expansion Slot On Board LAN

- Support 5xPCI Slotst
- 1xAGP Slot support AGP 8X/2

- Integrated Realtek 8201 LAN PHY  chip
- Supports 10/100 MB/sec data transfer rate

System Memory On Board Audio

- 2 x 184-pin DDR Module Socket Support Max 2GB DDR266/ DDR333/DDR400 DDR DRAM Module

- Software Audio Controller with Onboard 6-Channel CODEC Compliant to AC97Јѕ
- Support 3D Surround & Positioning,Full Duplex
- Support SPDIF IN/OUT

Jumpless Dimension Trademark - Support Jumpless function by BIOS SETUP let users more easier change the Frequency and ratio ATX form factor ( 30.5cm 21.0cm ) Product and Company names mentioned herein may be the trademarks of their respective owners. Magic Setting - Support CPU Front Side Bus step by step setting in BIOS SETUP let users have many choice when use over-clock function Ultra DMA 133

- Support 2 x Ultra DMA 133 IDE Interface (Up to IDE Devices & 133MB/s transfer rate)
- Support RAID0,1,0+1 fundtios
- ATAPI IDE CD-ROM,CD-R,CD-RW and LS-120 Support

Specification Performance List                                   The following performance data list is the testing result of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users (the different Hardware & Software configuration will result in different benchmark testing results.) Performance Test Report CPU:                    AMD K8 Athlon 64 3400+ ( 1024k L2 cache ) DRAM:                         TwinMOS hynix Hy5 du56822 CT 512M DDR400 X 2 (1Gbyte) Memory, VGA Card:        ATI RADEON 9800 PRO 256M (1024X768X32bit Color) Hard Disk Driver:   Seagate Barracude 7200.7 SATA150 BIOS:                      BIOS Load Optimal Default OS:                             Windows XP Professional (SERVICE PACK 2) 3D Mark 2001SE 19240 3D Mark 2003 5709 3D Mark 2005 2421 AQUAMRK 3 42733 ( 5646 / 8815 )  PCMark2004  System / CPU / Memory 4271 / 4097 / 3502  Graph / HDD 3900 / 4486  Content Creation Winstone 2004 30.9  Business Winstone 2004 24.9  Winbench 99 V2.0:  Business/Hi-end Disk Winmark99 13200 / 25900  Business/Hi-end Graphic Winmark 1030 / 1800 SISMark 2004 : SISMark Rating (Internet Content Creation / Office Productivity) SISMark 2004 170 ( 183 / 157 ) 3D Creation / 2D Creation 193 / 238 / Web publication 133 Communication / Document Creation 140 / 187 /Data Analysis 147 SISOFT Sandra 2005 :1.CPU Arithmetic Benchmark 2.Memory bandwidth Benchmark 3.CPU Multi-Media Benchmark 1.Dhrystone ALU MIPS 9466 Whetstone FPU iSSE2 FLOPS 3625 / 4706 2.Int/Float Buffered iSSE2 MB/S 2727 / 2728 3.Integer/Floating-Point iSSE2 IT/S 21056 / 22717 UT2003 Benchmark (flyby/botmatch) FPS 259.31 / 93.17 Quake 3 DEMO1 / DEMO2 FPS 326.9 / 323.1 Return to Castle Wolfenstein FPS 175.1 Super Pi (1M) Second 41s CPU System / CPU Clock Mhz 200.9 / 2210.0

 BIOS
Type Version size Description Date Download BIOS   512KB

Jetway has phased out this product.Please ask Jetway FAE for BIOS download when there is need.

2006-6-27

Driver
Type Version size Description Date Download Sound   40M OnBoard ALC Codec Sound Driver

os: Windows 2000 , Windows XP , VISTA

2007-5-23 Download Link Chipset   31M NF3 Chipset Driver for XP64

os: Windows XP 64 bit

2006-4-4 Download Link Chipset   9.1M NF3 Chipset Driver for 98SE/ME

os: Windows 98SE/ME

2006-4-4 Download Link Chipset   27M NF3 Chipset Driver for 2000/XP

os: Windows 2000 , Windows XP 32 bit

2006-4-4 Download Link Other1   426K NF3 SUB 2.0 Driver

os: Windows 2000

2006-4-4 Download Link Other1   320K NF3 SATA Driver

os: Windows 2000 , Windows XP 32 bit

2006-4-4 Download Link

Manual
Type Version size Description Date Download Manual   4.3M M/B For Socket 754 AMD Athlon64 Processo 2006-6-27 Download Link

Utility
Type Version size Description Date Download Utilities 8.83 32KB BIOS Update Utilities 2006-7-31 Download Link
