nForce2

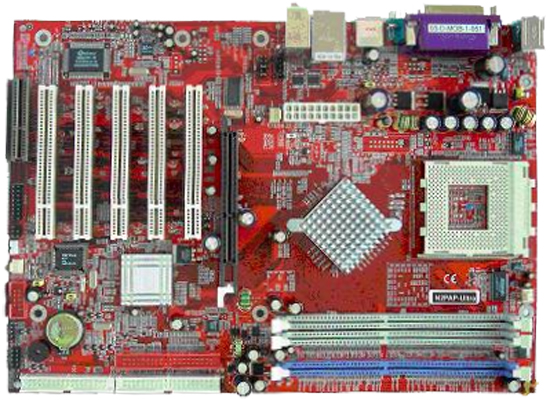

N2PA-Ultra

nVIDIA nForce2 SPP North Bridge,MCP South Bridge Support Socket-A for AMD Athlon /Duron at 266/333/400MHz 8x AGP VGA Mode Support Dual Channel DDR400 RAM Support ATA133 Support USB2.0 6 Channel Speaker. Onboard LAN (N2PAP-Ultra only)

Support Socket-462 for AMD AthlonXP/Athlon/Duron TM uni-proccessor support 200/266/333/400MHz Front Side Bus with double data rate
nVIDIA nForce 2 SPP North Bridge , MCP South Bridge.
Support ATA 133
Support USB 2.0
OnBoard LAN (N2PAP-Ultra only)
Support 6-Channel Speaker
Extend AGP Slot Support 8X AGP
Support Dual Channel DDR266/DDR333DDR400 DDR SDRAM
PCбж99 Ready & PCбж99 Colorful I/O Ports Design
Support USB Controller & PS/2 Mouse , Standard IR (infrared) Function
Provide extra " three-wire" fans connectors
JumperLess
Frequency Magic Setting
PC Health Monitoring On Post Screen
Magic Install
BIOS Write Protect function to avoid Virus crash data
CPU overheat protect
BIOS Auto Detect CPU voltage
Y2K Compliant
ACPI Supporting For OS Directed Power Management

Modem Ring remote wake up RTC alarm wake up Wake on LAN For OS Support software suspend & power off Support Power Button Ride (Instant off or Delay 4 second power off) Power Fail Recovery support
 Specification Performance List                                   The following performance data list is the testing result of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users (the different Hardware & Software configuration will result in different benchmark testing results.) Performance Test Report CPU:                    AMD ATHL ON XP 3000+ (FSB 200MHZ) DRAM:                         KINGSTON D328DW 512M DDR400 X 2 PCS Total 1 Gbyte Memory , VGA Card:        ATI RADEON 9700 PRO (1024X768X32bit Color) Hard Disk Driver:   IBM IC35L040AVVN07-0 (ATA-100 7200RPM) BIOS:                      BIOS Load Optimal Default OS:                             Windows XP Professional (SERVICE PACK 1) 3D Mark 2001SE 14822 3D Mark 2003 4708 3D Winbench 2000 (32/32bit) 445 PC Mard 2002 CPU / Memory / HDD 6623 / 5706 / 865 Content Creation Winstone 2002 48 Content Creation Winstone 2003 39.3  Business Winstone 2002 39.6  Winbench 99 V1.2:  Business Disk Winmark99 9400  Hi-end Disk Winmark99 31900  Business Graphic Winmark 782  Hi-end Graphic Winmark 1830 SYS Mark 2001/2002 : SISMark 2001/2002 Rating (Internet Content Creation / Office Productivity) SISMark 2001 251 ( 258 / 245 ) SISMark 2002 252 ( 330 / 193 ) SISOFT Sandra 2003: Dhrystone ALU MIPS 7893 Whetstone FPU MFLOPS 3185 RAM Int Buffered iSSE2 MB/S 2720 RAM Float Buffered iSSE2 MB/S 2470 Integer SSE2 IT/S 11682 Floating-Point SSE2 IT/S 12482 Quake 3 DEMO1 FPS 247.8 Quake 3 DEMO2 FPS 246.0 Return to Castle Wolfenstein FPS 130 WCPUID System / CPU Clock Mhz

 BIOS
Type Version size Description Date Download BIOS       2006-3-3 Download Link

Driver
Type Version size Description Date Download Sound   3M OnBoard CMedia Codec Sound Driver

os: Windows 2000 , Windows XP 32 bit

2006-4-4 Download Link VGA   2.1M NFORCE2 INTEGRATED DRIVER

os: Windows XP 32 bit

2006-4-4 Download Link VGA   50K NFORCE2 INTEGRATED DRIVER

os: Windows NT4.0

2006-4-4 Download Link VGA   2.6M NFORCE2 INTEGRATED DRIVER

os: Windows 98SE/ME

2006-4-4 Download Link VGA   2.2M NFORCE2 INTEGRATED DRIVER

os: Windows 2000

2006-4-4 Download Link

Manual
Type Version size Description Date Download Manual   5.6M AMD Athlon XP/Athlon/Duron Processor M/B 2006-4-20 Download Link

 Utility
Type Version size Description Date Download Utilities 8.83 32KB BIOS Update Utilities 2006-7-31 Download Link
