GeForce7100/nFoce630i

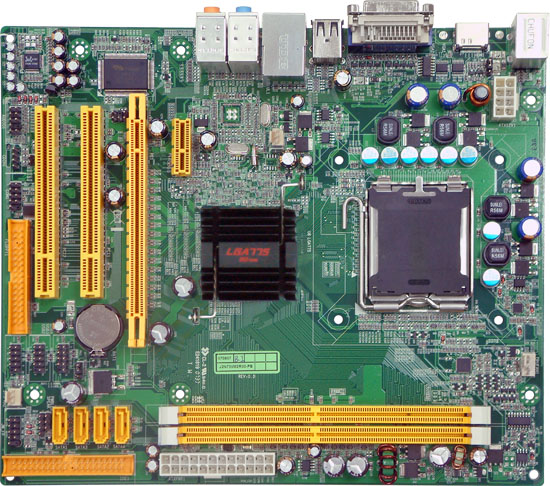

IN73M2-PHG-VT

NVIDIA GeForce7100/nForce630i (MCP73PV) Chipset Support Intel LGA775 Core Processor Family Integrated Geforce 7100 GFX Core processor Support FSB 1333MHz Advanced 4-Phase PWM Design TWO DDR2 800 Memory DIMMs Supported Support 4 Serial ATA2 Devices with RAID 0, 1, 5,0+1 Support DVI Output Gigabit LAN Supported Azalia 8 Channel Audio CODEC CPU Vcore 7-Shift Micro ATX Form Factor
Certification For Motherboard Model Windows Vista - x86
x64 Windows Vista Basic - x86 Windows Vista Basic - x64 Designed for Windows XP - x86 Designed for Windows XP - x64 Designed for Windows XP - IA64 IN73M2-PHG-VT  - -
-
-


 Specification CPU LGA 775 Socket for FSB 1333/1066 / 800 MHz Intel® Core Processor Family (Core 2 Exteme, Core 2 Quad, Core 2 Duo Processors) Chipset NVIDIA GeForce7100/nForce630i (MCP73PV) single chipset Memory 2 * 240-pin DIMM Sockets for unbuffered DDR2 800 SDRAM up to 4 GB Expansion Slots 2 * 32-bit PCI Slots / 1* PCI EXPRESS x16 Slots / 1* PCI EXPRESS x1 Slots Storage 2 * Ultra DMA 133 / 100 / 66 IDE Devices Support Embedded GeForce7100/nForce630i Chipset Supports 4 Serial ATA2 Devices with RAID Functions. Audio Realtek ALC883 8-Channel Azalia Audio CODEC Ethernet LAN Realtek RTL8211B Gigabit LAN PHY USB Embedded 10 * High Speed USB @ 480 Mbit / s Special Features Advanced Power Design that supports the latest LGA775 CPU бзIMAGE IT!би System Backup Software and бзProMagicPLUS!би System Recovery System Rear Panel I / O 4 * High Speed USB Connectors @ 480 Mbit / s 1 * PS / 2 Mouse & 1 * PS/2 Keyboard 1 * RJ45 Connector 1 * Audio I / O 1 * VGA Port 1 * DVI port 1 * HDMI Port Internal I / O 3 * High Speed USB Connectors @ 480 Mbit / s for 6 USB 2.0 Ports CPU / Chassis Fan Connectors; 1 * 12V 8-pin ATX Power Connector and 1 * 24-pin ATX Power Connector CD / AUX Audio in 1 * Serial Port Header BIOS Award 4MB SPI Flash ROM Form Factor Micro ATX Form Factor

BIOS
Type Version size Description Date Download BIOS A05 1MB

1.Update NVMM 4.081.23.
2.Support Intel 45nm CPU.

2008-3-4 Download Link BIOS A04 1MB 1. To solve the irregular flashes of indicator light when using the Win2 KB-827D keyboard 2. To solve the system failure when plugging only USB keyboard to enter CMOS Setup. 3. Update NVMM4.074.29. 2008-2-1 Download Link BIOS A03 1MB 1.Update NVMM 4.074.13.
2.Update VGA BIOS 5.73.32.08.08.
3.Support onboard VGA  over clock.
4.Support SATA AHCI mode. 2007-11-2 Download Link

 Driver
Type Version size Description Date Download Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008-8-28 Download Link Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008-8-28 Download Link LAN   11M OnBboard Realtek PCI-E Lan Driver

os: Windows 98SE , 2000 , Windows XP , VISTA

2008-8-27 Download Link Other2   5.4M HDMI Driver

os: Windows XP/VISTA

2008-2-15 Download Link Other1   4.8M SYSTEM GUARD

os: Windows 2000/XP

2008-2-15 Download Link Raid   1483K Onboard Raid driver

os: Windows 2000 , Windows XP

2008-2-15 Download Link Chipset   85M Nvidia N73 Chipset Driver

os: Windows VISTA 64bit

2008-2-15 Download Link Chipset   72M Nvidia N73 Chipset Driver

os: Windows VISTA 32 bit

2008-2-15 Download Link Chipset   92M Nvidia N73 Chipset Driver

os: Windows XP 64 bit

2008-2-15 Download Link Chipset   84M Nvidia N73 Chipset Driver

os: Windows 2000 , Windows XP 32 bit , Windows 2003 32bit

2008-2-15 Download Link

Manual
Type Version size Description Date Download Manual 3.0 387KB

Manual

2008-3-27 Download Link

 Utility
Type Version size Description Date Download Utilities 8.83 32KB BIOS Update Utilities 2007-7-30 Download Link
