C51D

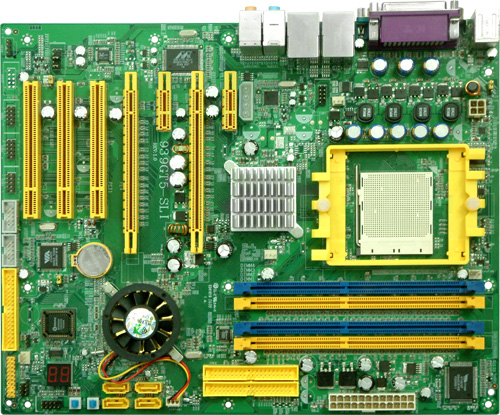

939GT5-SLI

nVidia nForce4 C51D +nForce4 SLI MCH Chipset Support 64-bit dual core AMD Athlon 64 X2 processor Support HTT 1000 MHz & Nvidia SLI x16 Platform Dual PCI-Express x16 Slots @ Full 16-LANE Bandwidth Dual Channel DDR400 Memory DIMMs Support 4 Serial ATA2 Devices with RAID 0.1.0+1. Support NV Firewall. Dual Gigabit LAN Supported. AC97 8 Channel Audio CODEC. Embedded IEEE.1394a. 4-PHASE PWM / Debug Port / CPU Vcore 7-Shift. ATX Form Factor

64-bit AMD Athlon 64 Processor with HyperTransport Technology

AMD64, a revolutionary technology allowing the processor to run 32-bit applications at full speed while enabling a new generation of powerful 64-bit software applications. HyperTransport  technology can increase overall system performance by removing I/O bottlenecks, increasing system bandwidth, and reducing system latency.



NVIDIA nForce4 C51D Chipset and nForce4 SLI MCP Chipset / NVIDIA SLI x16 platform

NVIDIA nForce4 C51D and nForce4 SLI MCH Chipsets based PCs feature the latest SLI x16 PCI-Exprexx bus technolog and deliver high performance,single-chip,low-latency architecture of the NVIDIA nForce4 Chipset series which offers one of the industry is  advanced core-logic solution with qualified performance and the latest technologies-PCI Express, secure high-speed networking, and high-performance storage and ensures that your PC stays ready for the newest games, future applications, and next-generation PC specifications.



CPU Thermal Throttling / The Anti-superheated CPU protection Technologv

To prevent the increasing heat from damaging of CPU while the activation of the Bi-turbo technology, the CPU Thermal Throttling Technology will make CPU be idling from 87.5% to 12.5% by manually preset CPU operating temperature from 40oC to 90oC. When the system senses the climbing operating temperature of CPU over the value preset, CPU Thermal Throttling Technology will narrow the operating bandwidth of CPU actively to low down the temperature to the value preset as the perfect protection system of hardware dynamic over-clocking technology.



Pro Magic Plus System Recovery Software Embedd Restore important data back right away, allowing your system to be operated under a safe environment. This amazing software not only provides convenient instant restoration, but also brings data back to the preferred state at any specific time point as you wish. Moreover, it combines several other functions such as anti-virus, backup software, uninstall software, multi-booting etc. to satisfy your needs of all sorts of system protections. No more worries on new virus or system failure!   PCI Express Buses The PCI Express x16 graphics delivers up to 4 GB/s per direction, 3.5 times more bandwidth than AGP8X and up to 8 GB/s concurrent bandwidth. PCI Express x1 I/O offers 500 MB/s concurrently, over 3.5 times more bandwidth than PCI at 133 MB/s, tackling the most demanding multimedia tasks nowadays.   CPU Vcore16-Shift / Shift_to the scalabilities and flexibilities The adjustable voltage for CPU Vcore can be upgraded in sixteen stages for the precisely hardware dynamic over-clocking of demanding computing performance.


Specification Performance List                                   The following performance data list is the testing result of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users (the different Hardware & Software configuration will result in different benchmark testing results.) Performance Test Report CPU:                    AMD K8 Athlon 64 3200+ ( 512k L2 cache ) DRAM:                         KingMPTC220D-38HT DDR-500 512M X 2 (1Gbyte) Memory,Daul channel VGA Card:        Geforce6600GT PCIE VGA / Geforce 6600GT 128M PCIE VGA CARD (1024X768X32bit Color) Hard Disk Driver:   Seagate Barracude 7200.7 SATA150 BIOS:                      BIOS Load Optimal Default OS:                             Windows XP Professional (SERVICE PACK 2) 3D Mark 2001SE 18081 3D Mark 2003 8198 3D Mark 2005 3487 AQUAMRK3 54416 ( 7674 / 9350 )  PCMark2004  System / CPU / Memory 3984 / 3829 / 4997  Graph / HDD 4237 / 4591  Content Creation Winstone 2004 31.6  Business Winstone 2004 22.1  Winbench 99 V2.0:  Business/Hi-end Disk Winmark99 14900 / 32100  Business/Hi-end Graphic Winmark 1210 / 1930 SISMark 2004 : SISMark Rating (Internet Content Creation / Office Productivity) SISMark 2004 173 ( 184 / 162 ) 3D Creation / 2D Creation 175 / 224 / Web publication 158 Communication / Document Creation 147 / 174 /Data Analysis 165 SISOFT Sandra 2005 :1.CPU Arithmetic Benchmark 2.Memory bandwidth Benchmark 3.CPU Multi-Media Benchmark 1.Dhrystone ALU MIPS 9291 Whetstone FPU iSSE2 FLOPS 3172 / 4106 2.Int/Float Buffered iSSE2 MB/S 5578 / 5515 3.Integer/Floating-Point iSSE2 IT/S 19200 / 20653 UT2003 Benchmark( flyby/botmatch) FPS 258.27 / 86.77 DOOM3 FPS 91.5 Super Pi (1M) Second 43s CPU System / MEMORY / CPU Mhz

BIOS
Type Version size Description Date Download BIOS   512KB 939GT5-SLI 2006-6-13 Download Link

Driver
Type Version size Description Date Download Sound   40M OnBoard ALC Codec Sound Driver

os: Windows 2000 , Windows XP , VISTA

2007-5-23 Download Link

Manual
Type Version size Description Date Download Manual   1.42M M/B Manual 2006-4-3 Download Link

Utility
Type Version size Description Date Download Utilities 8.83 32KB BIOS Update Utilities 2006-7-31 Download Link
