915G

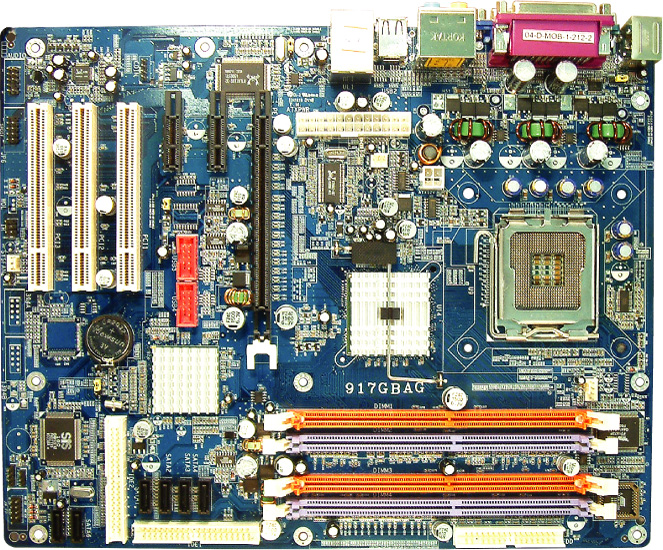

917GBAG

Intel 915G/915P Chipset Support LGA 775 Socket Pentium 4 CPU 533/800MHz F.S.B Prescott CPU Suppor USB 2.0 Support 8 Channel Speaker DDR333/400 SDRAM Support On-board 10/100/1000 LAN Onboard Serial ATA150 Port

Support LGA775 processor for Intel Pentium 4 LGA 775 processor ,Support 533/800MHz System Bus Frequency,Support Prescott /Hyper-Threading CPU
Intel 915G (917GDBG) / 915P (917PDBG) and 82801FB (ICH6) chipset
Support ATA133
Integrated Graphice Controller (917GDBG only)
Extend PCI EXPRESS 16X
Onboard Realtek 8110S Giga_LAN
DDR400 DDR SDRAM support
Support 6-Channel 3D sound
On board Serial ATA Controller Chip
PC?9 Ready & PC?9 Colorful I/O Ports Design
Support USB Controller & PS/2 Mouse , Standard IR (infrared) Function
Provide extra " three-wire" fans connectors
USB 2.0 support
Magic Frequency Setting
Jumperless
BIOS Write Protect function to avoid Virus crash data
PC Health Monitoring On Post Screen
Magic Install
Y2K Compliant
ACPI Supporting For OS Directed Power Management

Modem Ring remote wake up RTC alarm wake up Wake on LAN For OS Support software suspend & power off Power Fail Recovery Support Power Button Ride (Instant off or Delay 4 second power off) Power Fail Recovery support
Specification Performance List                                   The following performance data list is the testing result of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users (the different Hardware & Software configuration will result in different benchmark testing results.) Performance Test Report CPU:                    Intel Pentium 4 Prescott 3.6G DRAM:                        PMI SAMSUNG 512M DDR2-533 X 2 (1Gbyte) Memory VGA Card:        ON Board VGA share 32M (1024X768X32bit Color) Hard Disk Driver:   Seagate Barracude 7200.7 SATA150 BIOS:                      BIOS Load Optimal Default OS:                             Windows XP Professional (SERVICE PACK 2) 3D Mark 2001SE 5448 3D Mark 2003 1373 3D Mark 2005 271 AQUAMRK3 (GFX / CPU ) 8828 ( 930 / 8552 )  PCMark2004  System / CPU / Memory 3499 / 3657 / 4323  Graph / HDD 1036 / 4180  Content Creation Winstone 2004 27.9  Business Winstone 2004 22.4  Winbench 99 V2.0:  Business/Hi-end Disk Winmark99 7420 / 27300  Business/Hiend Graphic Winmark 381 / 1010 SISMark 2004 : SISMark Rating (Internet Content Creation / Office Productivity) SISMark 2004 160 ( 158 / 161 ) 3D Creation / 2D Creation 163 / 181 /Web Publication 133 Communication / Document Creation 145 / 164 /Data Analysis 174 SISOFT Sandra 2004 : 1.CPU Arithmetic Benchmark 2.Memory bandwidth Benchmark 3.CPU Multi-Media Benchmark 1.Dhrystone ALU MIPS 7939 Whetstone FPU iSSE2 FLOPS 4248 / 5742 2.Int/Float Buffered iSSE2 MB/S 4650 / 4683 3.Integer/Floating-Point iSSE2 IT/S 24823 / 28404 UT2003 Benchmark (flyby/botmatch) FPS 78.82 / 30.65 Quake3 DEMO1 / DEMO2 FPS 134.2 / 130.1 Return to Castle Wolfenstein FPS 79.1 Super Pi (1M ) Second 36s CPUZ System / CPU Clock Mhz


BIOS
Type Version size Description Date Download BIOS       2006-3-3 Download Link


Driver
Type Version size Description Date Download LAN   12M OnBboard Realtek PCI Lan Driver

os: Windows 98SE , 2000 , Windows XP , VISTA

2008-8-28 Download Link Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008-8-28 Download Link Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008-8-28 Download Link Other1   7.9M Onboard SiS SATA Controller Driver

os: Windows 2000 , Windows XP 32 bit

2006-4-4 Download Link VGA   11M Intel 915 VGA Driver

os: Windows 2000 , Windows XP 32 bit

2006-4-4 Download Link Chipset   1.2M Intel 915 Chipset Driver

os: Windows 2000 , Windows XP 32 bit

2006-4-4 Download Link

Manual
Type Version size Description Date Download Manual   921KB M/B For LGA 775 Pentium 4 Processor 2006-5-9 Download Link


Utility
Type Version size Description Date Download Utilities 8.83 32KB BIOS Update Utilities 2006-7-31 Download Link
