865GV

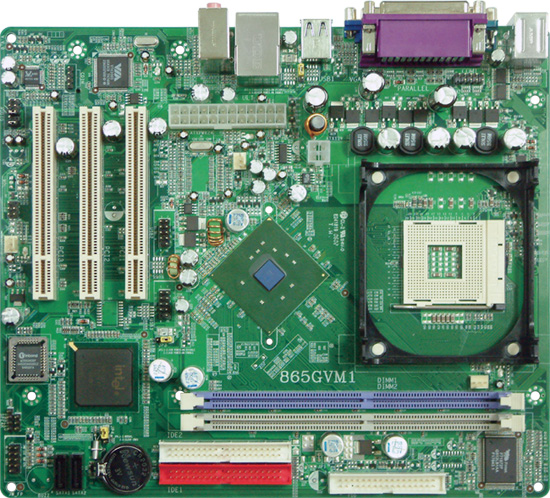

865GVM1

Intel 865GV Chipset + ICH5 ICH Chipset. Support Socket 478-pin Pentium 4 CPU . Support Intel Hyper-Threading Technology. Support FSB 800 / 533 / 400MHz. Integrated Intel Extreme Graphics 2 Technology. Dual channel DDR2 400 / 333 Memory DIMMs. 3 32-bit PCI Slots Desingn. Support 2 Serial ATA Devices. 4+4 USB 2.0 Connectors Embedded.. AC 97 6 Channel Audio CODEC. Micro ATX Form Factort
mPGA478 Intel® Pentium® 4 FSB 533MHz Processor with HT Technology Supported Innovative design which meets the world is most advanced 90 nanometer Chip-Making Process technology based Intel® Pentium® 4 Front Side Bus Speed at 533MHz Processors with Hyper Threading Technology and embedded 1MB L2 Cache for demanding usage of Home Networking and Game Enthusiasts.   INTEL 865GV Chipset and 82801 EB ICH Chipset The Intel® 865GV chipset, designed to support the Intel® Pentium® 4 processor supporting Hyper-Threading (HT) Technology, is a highly scalable solution that meets a range of demanding computing needs. The 865GV chipset offers high-bandwidth interfaces such as dual-channel DDR 400 main memory, 800 MHz system bus, and integrated graphics controller with Intel Extreme Graphics 2 technology.   Integrated INTEL Extreme Graphics 2 Intel Extreme Graphics 2 supports the latest 2D and 3D APIs, delivering real-life environment and character effects. A 256-bit internal path enables up to four textures per pixel on a single pass for super light maps, atmospheric effects, and more realistic surface details. Flexible display capabilities enhance the personal computing experience, offering significant benefits for applications requiring 32 bpp and higher display resolution.   Greater Performance with Hyper-Threading Technology Hyper-threading enables multi-threaded software applications to execute two software threads in parallel, thereby improving system responsiveness. Intel Pentium 4 Processors enabled with HT Technology deliver performance and multitasking gains that result in increased productivity and efficiency.   Dual Channel DDR 400 / 333 / 266 SDRAM Flexible memory technology allows a full spectrum of DDR usage from highest performance to more cost-effective systems.   Serial ATA Serial ATA is an evolutionary replacement for the Parallel ATA physical storage interface. Users of the Serial ATA interface benefit from greater speed, simpler upgradeable storage devices and easier configuration. Integrated Serial ATA controller of high-speed data transfers at up to 150 MB/s for each port and up to 133 MB/s for 1 parallel port.


Specification Performance List                                   The following performance data list is the testing result of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users (the different Hardware & Software configuration will result in different benchmark testing results.) Performance Test Report CPU:                    Intel Pentium 4 Prescott 3G / 800MHz FSB DRAM:                        KINGSTON D328DW 512M DDR400 X 2 PCS Total (1Gbyte) Memory VGA Card:        ON BOARD VGA (1024X768X32bit Color) Hard Disk Driver:   IBM IC35L040AVVN07-0 (ATA-100 7200RPM) BIOS:                      BIOS Load Optimal Default /CL=2.5 OS:                             Windows XP Professional (SERVICE PACK 1) 3D Mark 2001SE 2506 3D Mark 2003 70 3D Winbench 2000 ( 32 / 32BIT ) 78.3  PCMark2004  CPU / Memory/HDD 7336 / 6480 / 879  Content Creation Winstone 2002 48.9  Content Creation Winstone 2003 49.6  Business Winstone 2002 33.3  Winbench 99 V1.2:  Business Disk Winmark99 8840  Hi-end Disk Winmark99 31700  Business Graphic Winmark 205  Hi-end Graphic Winmark 852 SYSMark 2001/2002 : SISMark 2001/2002 Rating (Internet Content Creation / Office Productivity) SISMark 2001 278 ( 314 / 247 ) SISMark 2002 in Windows XP 283 ( 411 / 195 ) SISOFT Sandra 2003 Dhrystone ALU MIPS 7712 Whetstone FPU iSSE2 MFLOPS 1711 / 3944 RAM Int Buffered iSSE2 MB/S 2688 RAM FloatingBuffered iSSE2 MB/S 3689 Integer SSE2 IT/S 11923 Floating-Point SSE2 IT/S 15177 QUAKE3 DEMO1 FPS 125.6 QUAKE3 DEMO2 FPS 127.3 Return to Castle Wolfenstein FPS 84.5 WCPUID System / CPU Clock Mhz 199.66 / 2995.70

BIOS
Type Version size Description Date Download BIOS   512KB First release for production. 2006-4-15 Download Link


Driver
Type Version size Description Date Download Sound   40M OnBoard ALC Codec Sound Driver

os: Windows 2000 , Windows XP , VISTA

2007-5-23 Download Link VGA     Intel 845G VGA Driver

os: Windows Nt4.0

2006-1-1 Download Link VGA     Intel 845G VGA Driver

os: Windows 98SE/ME

2006-1-1 Download Link VGA     Intel 845G VGA Driver

os: Windows 2000 , Windows XP 32 bit

2006-1-1 Download Link Other1     Intel 845 IAA Driver

os: Windows 2000 , Windows XP 32 bit

2006-1-1 Download Link Chipset     Intel 845 Chipset Driver

os: Windows 2000 , Windows XP 32 bit

2006-1-1 Download Link

Manual
Type Version size Description Date Download Manual   5M M/B For LGA 775 Pentium 4 Processor 2006-5-10 Download Link

Utility
Type Version size Description Date Download Utilities 8.83 32KB BIOS Update Utilities 2006-7-31 Download Link
