780G

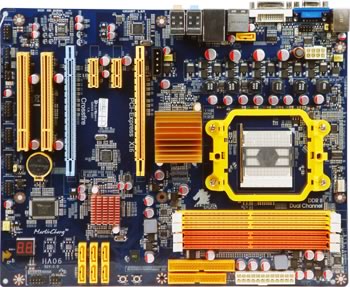

HA06

HA06 AMD™ 780G Chipset and AMD™ SB700 Chipset AM3 CPU ready Support Socket AM2+ Phenom™ processors Support HT 3.0 Integrated ATI Radeon HD 3200(For Directx 10) Support ATI Hybrid CrossFire Support PCI Express 2.0 x16 Dual Channel DDR2 800 Memory DIMMs Supported Support 6 Serial ATA Devices with RAID 0, 1,10 Ready for Windows® Vista™ PCI Express Gigabit LAN Supported 8-Channel HD Audio CODEC CPU Vcore 7-Shift/DVI Port/Debug Port Integrated DDR2 128MB side port memory ATX Form Factor

AMD Phenom™ Quad-Core Processors with True Quad-Core Technology
Realize new possibilities for connecting with friends, family, and digital entertainment with the phenomenal pe rformance of the AMD Phenom™ 9000 series quad-core processor. Built from the gr ound up for true quad-core performan ce, AMD Phenom processors speed through advanced multitasking, critical business productivity, advanced visual design and modeling, serious gaming, and visually stunning digital media and entertainm ent.

AMD™ 780G Chipset: Backbone of the Performance Platform
AMD™ 780G chipset based PCs feature the latest PCI-Express™ 2.0 bus technology and deliver high performance, low latency architecture offer one of the industry’s advanced core-logic solutions with qualified performance and the latest technologies—PCI Express 2.0, secure high-speed networking, and high-performance storage—and ensures that your PC stays ready for the newest games, future applications, and next-generation PC specifications

AMD™ SB700 Southbridge Chipset
AMD SB700 Series offers advanced technologies and superior performance to any chipset platform solution for AMD desktop and mobile applications. With superior performance and broad-based connectivity, SB700 is rich in all the latest advanced features such as 12 USB 2.0 ports and audio. Designed for full data access for the fastest Windows Vista experience, it features new disk controller technologies that ensure fast file access while providing encryption for data security. AMD SB700 is designed with advanced power management for low power consumption and energy efficient platforms.

GPU Clock Adjustable
Onboard VGA can overcloking.

PCI Express 2.0 Buses
The PCI Express 2.0 x16 graphics delivers up to 8 GB/s per direction, 2 times more bandwidth than PCI Express x16 and up to 16 GB/s concurrent bandwidth. PCI Express x1 I/O offers 1GB/s concurrently, over 7 times more bandwidth than AGP8X, tackling the most demanding multimedia tasks nowadays

OC-CON high-polymer solid electrolysis aluminum capacitors embedded
The working temperature is from 55 degrees Centigrade below zero to 125 degrees Centigrade, OC_CON capacitors possess superior physical characteristics that can be while reducing the working temperature between 20 degrees Centigrade each time, intact extension 10 times of effective product operation lives, at not rising degrees Centigrade of working temperatures each time a relative one, life of product decline 10% only too.

Debug Port / The Professional Hardware Diagnosis System
Being bugged of abnormal system failure through the tossed and turned nights no more, the embedded Hardware Debug Port offers you the real-time visual system healthy for the demanding usage of computing. No more bugging by unknown system failure and no more time wasted in the first moment of 24-hour nonstop ping business computing, the embedded Debug Port will turn you into a well training hardware professional with the seeing system situation..

CPU Vcore 7-Shift / Shift_to the scalabilities and flexibilities
The adjustable voltage for CPU Vcore can be upgraded in 31 stages for the precisely hardware dynamic over-clocking of demanding computing performance.



Specification

CPU Socket AM2+ HT3.0 AMD Phenom With HyperTransport Technology Compatible with 64-bit Dual Core AMD® Athlon™64 X2 Processor Chipset AMD™ 780G Chipset + AMD™SB700 Chipset Memory 4 * 240-pin DIMM Sockets for unbuffered Dual DDR2 800 SDRAM up to 8 GB Expansion Slots 2* 32-bit PCI Slots / 2 * PCI EXPRESS x16/ 2 * PCI EXPRESS x1 Storage 2 * Ultra DMA 133 / 100 / 66 IDE Devices Support Embedded AMD™SB700 Southbridge Chipset Supports 6 Serial ATA2 HDDs with RAID 0, 1,10 Functions Audio Realtek ALC888 8-Channel HD Audio CODEC Ethernet LAN Realtek RTL8111C PCI Express Gigabit NIC USB Embedded 12 * High Speed USB @ 480 Mbit / s Special Features Advanced Power Design that supports the latest Socket-AM2 + K10 CPU Rear Panel I / O 4 * High Speed USB Connectors @ 480 Mbit / s 1 * PS / 2 Mouse 1 * PS/2 Keyboard 1 * D-Sub 15-pin Connector 1 * DVI Connector 1 * RJ45 Over USB2.0 Connector 1 * Audio I / O 1 * E-SATAPort Internal I / O 4 * High Speed USB Connectors @ 480 Mbit / s for 8 USB 2.0 Ports CPU / Chassis Fan Connectors 1 * 12V 8-pin ATX Power Connector 1 * 24-pin ATX Power Connector 1 * Serial Port of 9-pin Block CD / AUX Audio in 1 * Floppy Connector SPDIF header BIOS Award 8 MB SPI Flash ROM Form Factor ATX Form Factor

 BIOS
Type Version size Description Date Download BIOS A09 1MB To solve the problem that A08 BIOS fail to display CPU temperature. 2008-8-5 Download Link BIOS A08 1MB

1.Solve the 05H fault that when you use AM2+ CPU to regulate the voltage of memory
2.Solve the fault that under XP system ,when you make Hybrid CROSSFIRE it occurs unstable

2008-8-1 Download Link

Driver
Type Version size Description Date Download Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008-8-28 Download Link Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008-8-28 Download Link LAN   11M OnBboard Realtek PCI-E Lan Driver

os: Windows 98SE , 2000 , Windows XP , VISTA

2008-8-27 Download Link Other1   4.7M SYSTEM GUARD

os: 'Windows XP 32 bit

2008-4-1 Download Link Raid   527K Onboard Raid driver

os: 'Windows XP 32 bit

2008-4-1 Download Link Chipset   108M ATI RS780 Chipset Driver

os: Windows VISTA

2008-4-1 Download Link Chipset   141M ATI RS780 Chipset Driver

os: Windows XP 32/64 bit , Windows 2003 32/64bit

2008-4-1 Download Link

 Manual
Type Version size Description Date Download Manual 4.0 1.43MB

Manual(English)

2008-9-25 Download Link
