770

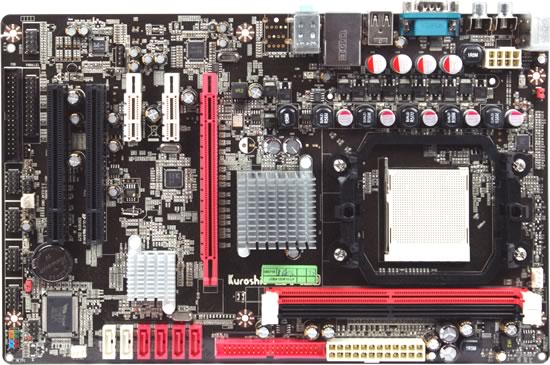

BA-120

AMD™ 770 Chipset and AMD™ S700 Chipset Supports Socket AM2+ AMD Phenom Supports Socket AM2 64-bit dual core AMD Athlon64 X2 processor Support G.P.I Technology Supports Dual Channel DDR2 1066/800 Integrated Serial ATA2 3Gb/s with RAID function Integrated Gigabit LAN Integrated ALC662 HD Audio CODEC with 6.0 CH CPU Vcore 7-Shift Ready for Windows® Vista™ ATX Form Factor

AMD Phenom Quad-Core Processors with True Quad-Core Technology
Realize new possibilities for connecting with friends, family, and digital entertainment with the phenomenal performance of the AMD Phenom 9000 series quad-core processor. Built from the ground up for true quad-core performan  ce, AMD Phenom processors speed through advanced multitasking, critical business productivity, advanced visual design and modeling, serious gaming, and visually stunning digital media and entertainment.

AMD 770 Chipset: Backbone of the Performance Platform
The AMD 770 Chipset supports dual PCI Express® 2.0 slots for next generation ATI CrossFireX graphics cards. Get the upgrade flexibility needed for a leading-edge performance rig. Both the AMD 770 Chipset enable you to enjoy your games without compromise. Backed by single or dual PCI Express® 2.0 slots, turn your PC into the ultimate gaming machine. The AMD 770 Chipset are loaded with the latest HyperTransport 3.0 technology optimized for high-resolution gaming and HD video. Both the AMD 770 Chipset allow the performance of dedicated graphics across a high-speed PCI Express® 2.0 interface to edit and enjoy your HD media.

Jetway G.P.I Technology
G.P.I is the acronym for the “Green Power Indicator” technology. Jetway’s motherboard series with G.P.I technology have a specially designed chip for real-time detecting CPU workload. The green power indicator will automatically turn off when CPU workload is heavy and turn on when CPU workload is light to indicate power saving mold being activated.

Pro Magic Plus System Recovery Software Embedded
Restore important data back right away, allowing your system to be operated under a safe environment. This amazing software not only provides convenient instant restoration, but also brings data back to the preferred state at any specific time point as you wish. Moreover, it combines several other functions such as anti-virus, backup software, uninstall software, multi-booting etc. to satisfy your needs of all sorts of system protections. No more worries on new virus or system failure!

OC-CON high-polymer solid electrolysis aluminum capacitors embedded
The working temperature is from 55 degrees Centigrade below zero to 125 degrees Centigrade, OC_CON capacitors possess superior physical characteristics that can be while reducing the working temperature between 20 degrees Centigrade each time, intact extension 10 times of effective product  operation lives, at not rising degrees Centigrade of working temperatures each time a relative one, life of product decline 10% only too

CPU Vcore 7-Shift / Shift_to the scalabilities and flexibilities
The adjustable voltage for CPU V-core can be upgraded in 31 stages for the precisely hardware dynamic over-clocking of demanding computing performance

Specification

CPU

Supports AMD Socket AM2+/AM2:

AMD Phenom processors Athlon 64 X2 / Athlon 64 FX / Athlon 64 / Sempron processors Chipset AMD™ 770 Chipset + AMD™SB700 Chipset Hyper Transport Bus HT 3.0 Memory Dual Channel DDR2 memory technology 2 * 240-pin DDR2 DIMM slots Supports DDR2 1066/800 non-ECC ,un-buffered memory Max.4GB Expansion Slots 2 * 32-bit PCI Slots 1 * PCI Express 2.0 x16 slots by 16-LANE 2 * PCI Express x1 Slots Storage

AMD™SB700 Southbridge Chipset :

6 * Serial ATA2 3Gb/s connectors Supports HDDs with RAID 0,1,0+1 functions 1 * Ultra DMA 133 / 100 / 66 IDE connector Audio Realtek ALC662 6-Channel HD Audio CODEC Ethernet LAN Realtek RTL8111CVC PCI Express Gigabit NIC USB Embedded 12 * USB 2.0/1.1 Special Features Advanced Power Design that supports the latest Socket-AM2 K8 CPU "IMAGE IT!" System Backup Software and "ProMagicPLUS!" System Recovery System Rear Panel I / O 4 * USB 2.0/1.1 ports 1 * PS/2 mouse port 1 * PS/2 keyboard port 1 * SPDIF_ In/Out port 1 * RJ-45 port 1 * Audio I/O port Internal I / O 4 * USB 2.0/1.1 headers for 8 USB 2.0/1.1 ports CPU / Chassis Fan connectors 1 * 8-pin ATX 12V Power connector 1 * 24-pin ATX Power connector 1 * Serial port of 9-pin block 1 * Parallel header&1 * IR header CD / AUX Audio in 1 * Ultra DMA 133 / 100 / 66 IDE connector 1 * Floppy connector 1 * HDMI_SPDIF header BIOS Award 8MB SPI Flash ROM Form Factor ATX Form Factor

BIOS
Type Version size Description Date Download BIOS A03 1MB

1.Update AMD Agesacode to 3.2.9.0.
2.Update SouthBridge CIM code to 4.2.0.

2008-11-7 Download Link BIOS A01 1MB

First release for production.

2008-7-30 Download Link

Driver
Type Version size Description Date Download Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008-8-28 Download Link LAN   11M OnBboard Realtek PCI-E Lan Driver

os: Windows 98SE , 2000 , Windows XP , VISTA

2008-8-27 Download Link Chipset   105M AMD 770 Chipset Driver

os: Windows VISTA 32/64bit

2007-11-8 Download Link Chipset   3.7M AMD 770 Chipset Driver

os: Windows 2000 , Windows XP 32 bit , Windows 2003

2007-11-8 Download Link Raid   3.7M Onboard Jmicro Raid driver

os: Windows 2000 , Windows XP

2007-11-8 Download Link

Manual
Type Version size Description Date Download Manual 2.0 2.89MB

Manual

2008-8-14 Download Link
