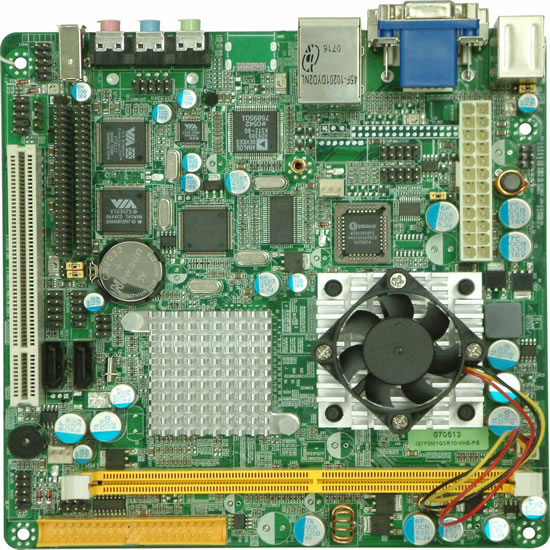

CX700M

J7F5M1G5-VDE

VIA CX700M Single Chipset Technology
Support VIA C7 Nano-BGA processor
Support Front Side Bus 533MHz
Single Channel DDR2 533 Memory DIMM
Support 2 Serial ATA2 Devices with RAID 0 , 1
Support PCI 120-Pin Adapter Conn.
With Expansion Daughter-boards
Ethernet LAN Supported
6 Channel HD Audio CODEC
VIA VT6307 IEEE1394a Controller for J7F5M-VHE
VIA VT1622A TV Encoder for J7F5M-VHE
17 X 17CM Mini-ITX Form Factor






Form Factor  Micro-ITX Express Motherboard CPU  Support VIA C7  Processor .
 Support Low Voltage Edition IncIuded
 Package type : 400 . Memory  1 * 240-pin DIMM Sockets for unbuffered DDR2 533 SDRAM up to 1 GB. Chipset  VIA CX700M Single Chipset Power Management   N / A . PCI enhanced IDE  2 * Ultra DMA 133 / 100 / 66 IDE Devices Support . Serial ATA Interface  2 Serial ATA2 HDDs with RAID 0, 1 Function Support VGA Interface  VIA Unichrome Pro II . Video Memory  Share Memory up to 128MB. LVDS Interface N/A Audio Interface  VIA VT1708A 6-Channel HD Audio CODEC. LAN Interface  VIA VT6122 10 / 100 / 1000 PCI-E LAN Extended Interface  1 * 32-bit PCI Slot
 1 * PCI 120-Pin Adapter Connector With Expansion Daughter Boards . Internal I/O Port  2 * High Speed USB Connectors @ 480 Mbit / s for 4 USB 2.0 Ports
 1 * CPU Smart Fan Connector, 2 * Chassis Fan Connectors.
 2 * 9-Pin COM Port Connector / 1 * CD / AUX Audio in & SPEAK Out & SPEAK Out.
 1 * HDTV Out Connector
 1 * IrDA (SIR) / 1 * 4-pin Video Input Pin-header .
 1 * PCI 120-Pin Adapter Conn. Externall I / O Port

 2 * High Speed USB Connectors @ 480 Mbit / s .
1 * DVI Port / 1 * D-Sub 15-pin VGA Connector
 1 * PS / 2 Mouse & 1 * PS/2 Keyboard / 1 * RJ45 Connector / 1 * Audio I / O.
 1 * IEEE 1394a Connector for J7F5M-VHE ITX motherboards .

BIOS  Award 4 MB Flash ROM Power Requirement  Standard 24 -Pin ATX Power supply . Dimension  170mm x 170mm . Temperature  Operating within 0~60 centigrade .
 Storage within -20-85 centigrade .

BIOS Type Version size Description Date Download BIOS 05.2 512KB

1.Change BIOS for PCI Riser Card.
2.Resolve some USB Storages can not start.

2008/9/10 Download Link BIOS 05.1 512KB Let the default of HPET/WDRT to be disabled. 2008/6/13 Download Link BIOS 05 512KB

1.Add RS485/RS232 options.
2.To suuport JADPE4S 4 SATA Raid device.

2008/4/28 Download Link

Driver Type Version size Description Date Download Sound   13M OnBoard VIA HD Codec Sound Driver

os: Windows 2000

2007/8/6 Download Link Raid   29M Driver For Linux

os: Linux

2007/7/6 Download Link Raid   1531K Onboard Capture Card Driver

os: Windows 2000 / XP

2007/7/6 Download Link other2   5M Hardware Monitoring program

os: Windows 2000 / XP

2007/7/6 Download Link other1   10M USB 2.0 Port Driver

os: Windows 2000 / XP

2007/7/6 Download Link LAN   10M OnBboard VIA 6122 Lan Driver

os: Windows 2000 / XP

2007/7/6 Download Link VGA   6.1M OnBoard Unichrome Pro2 Processor

os: Windows 2000

2007/7/6 Download Link Chipset   11.8M VIA Chipset Driver

os: Windows 2000 / XP

2007/7/6 Download Link

Manual Type Version size Description Date Download Manual 4.0 1.90MB MANUAL 2007/9/14 Download Link
