CN700

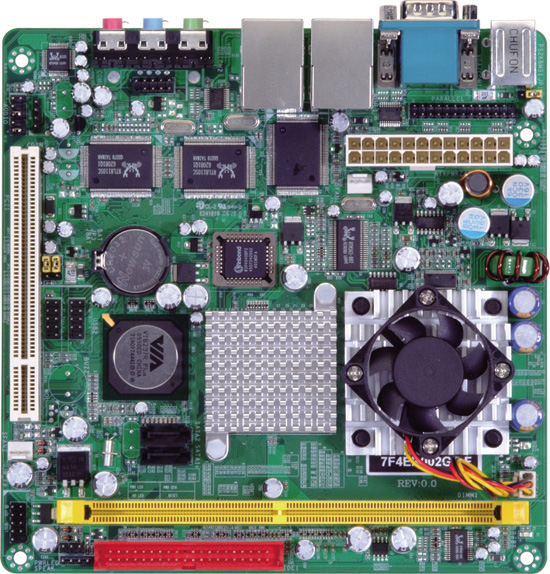

J7F4K1G5

VIA CN700 + 8237RP chipset Technology . Support VIA C7 @ 1.5GHz Nano-BGA processor. Support Front Side Bus 133MHz . Single Channel DDR2 533 Memory DIMM . Support 2 Serial ATA Devices with RAID 0,1 . Dual Gigabit Ethernet LAN Supported . 6 Channel AC, 97 Audio CODEC. 17 X 17CM Mini-ITX Form Factor.







Overview


Form Factor  Mini-ITX Express Motherboard CPU  Support VIA C7 @ 1.5GHz Processor .
 Package type : 400 . Memory  1 * 240 -pin DIMM Sockets for unbuffered DDR2 533 SDRAM up to 1 GB. Chipset  VIA CN700 + 8237RP chipset . Power Management  N / A . PCI enhanced IDE  2 * Ultra DMA 133 / 100 / 66 IDE Devices Support . Serial ATA Interface  2 Serial ATA HDDs with RAID 0.1 Function Support VGA Interface  VIA Unichrome Pro Processor . Video Memory  Share Memory up ot 128MB. LVDS Interface  N / A . Audio Interface  Realtek ALC655 6-Channel AC 97,  Audio CODEC. LAN Interface  Dual Realtek RTL8101SC 10 / 100 / 1000 PCI LAN .  Extended Interface  1 * 32-bit PCI Slot . Internal I/O Port  2 * High Speed USB Connectors @ 480 Mbit / s for 4 USB 2.0 Ports
 CPU / Chassis Fan Connectors / 1 * 26-pin Parallel Connector
 1 * 9-Pin COM2 Connector .
 1 * CD / AUX AUDIO IN & SPEAK Out . Externall I / O Port

 4 * High Speed USB Connectors @ 480 Mbit / s .
 1 * COM Port / 1 * D-Sub 15-pin VGA Connector .
 1 * PS / 2 Mouse & 1 * PS/2 Keyboard .
 2 * RJ45 Connector .
 1 * Audio I / O .

BIOS  Award 4 MB Flash ROM Power Requirement  Standard 24 -Pin ATX Power supply . Dimension  170mm x 170mm . Temperature  Operating within 0~60 centigrade .
 Storage within -20-85 centigrade

BIOS Type Version size Description Date Download BIOS 11.1 512KB

Solve the problem that the USB device does not have reaction.

2008/8/18 Download Link BIOS 10.1 512KB

Let the default of HPET/WDRT to be disabled.

2008/6/13 Download Link

Driver Type Version size Description Date Download LAN   12M OnBboard Realtek PCI Lan Driver

os: Windows 98SE , 2000 , Windows XP , VISTA

2008/8/28 Download Link LAN   12M OnBboard Realtek PCI Lan Driver

os: Windows 98SE , 2000 , Windows XP , VISTA

2008/8/28 Download Link Sound   40M OnBoard ALC Codec Sound Driver

os: Windows 2000 , Windows XP , VISTA

2007/5/23 Download Link Other1   20M Driver For Linux

os: Linux System

2007/1/23 Download Link VGA   20M OnBoard Unichrome Pro Processor

os: Windows 2000

2006/4/4 Download Link Chipset   7.4M VIA Chipset Driver

os: Windows 2000 , Windows XP 32 bit

2006/4/4 Download Link Raid   245K Onboard VIA SATA/Raid Driver

os: Windows 2000 , Windows XP 32 bit

2006/4/4 Download Link Other1   10M USB 2.0 Port Driver

os: Windows 2000

2006/4/4 Download Link

Manual Type Version size Description Date Download Manual 5.0 1.2M VIA CN700 Chipset & VIA VT8237R Plus Chipset M/B For VIA C7™ processor family 2007/8/8 Download Link

Utility Type Version size Description Date Download Utilities 8.83 32KB BIOS Update Utilities 2006/7/31 Download Link
