MCP78S

JBC202C62K-B

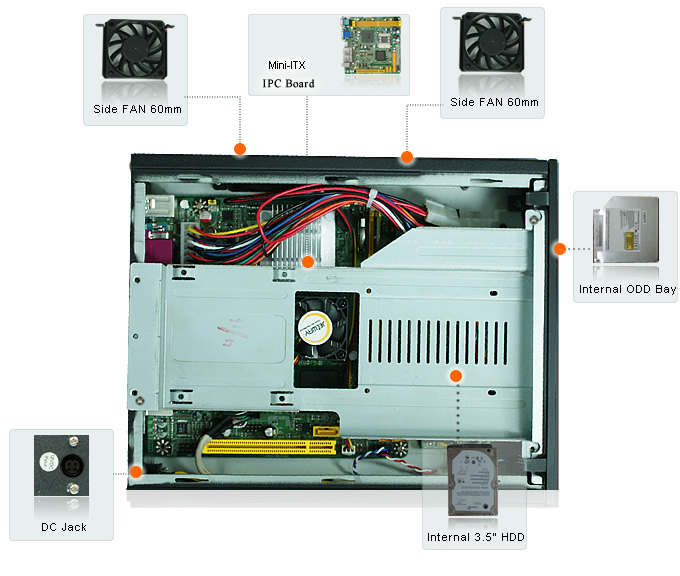

Product size 210(W) x 258(D) x 65(H)mm Specs Exposed 1 x Slim ODD Drive Bay and 1 x 2.5” HDD Drive Bay(Only support SATA 2.5” HDD) Colors Black Color Cooling Fan Side: 6cm Fan SLEEVE x 2 Front I/O Port 2 x USB(V2.0), Rear I/O Port 6 * USB 2.0/1.1 ports 2 * RJ-45 ports 1 * Audio I / O ports 1 * VGA port 1 * DVI port 2 * DB-9 RS232 ports Power supply 120W DC-DC Power Converter


Model No   JBC202C62K-B Motherboard Specification CPU Support Socket AM2+ Quad core Opteron™ & Phenom™
Suggest CPU power consumption <= 45W Chipset NVIDIA GF-8200 (MCP78S) single chipset
HT3.0 Memory 1*240-pin DIMM Sockets for un-buffered Single Channel DDR2 1066/800 SDRAM up to 2 GB LAN Realtek RTL8211B PHY Gigabit Ethernet LAN
Realtek RTL8111C PCI-E Gigabit Ethernet LAN Audio Realtek ALC883 8-Channel HD Audio CODEC w SPIF in and out Storage 4 * Serial ATA2 3Gb/s connectors
Supports HDDs with RAID 0, 1,10,5,JBOD functions
1 * Ultra DMA 133 / 100 / 66 IDE connector USB Embedded 10 * USB 2.0/1.1 BIOS Award 8MB SPI Flash ROM Form Factor Mini-ITX Form Factor, M/B 170 x 170mm Barebone Specification Product size 210(W) x 258(D) x 65(H)mm Specs    Exposed 1 x Slim ODD Drive Bay and 1 x 2.5” HDD Drive Bay(Only support SATA 2.5” HDD) Colors Black Color Cooling Fan Side: 6cm Fan SLEEVE x 2 Front I/O Port 2 x USB(V2.0), Rear I/O Port 6 * USB 2.0/1.1 ports
2 * RJ-45 ports
1 * Audio I / O ports
1 * VGA port
1 * DVI port
2 * DB-9 RS232 ports Power supply 120W DC-DC Power Converter Standard Accessory IDE Converter Card (For Slim ODD Drive) x1 60W AC-DC Adapter x1 Power Cord x1 Stand x4 IDE CABLE x1 SATA CABLE x1 Functional Set Top Box, Thin Client, Car Entertainment, Smart Mini PC, POS/POI, KIOSK Packing Color Box DimensionЎG417(W) x 137(D) x 296(H)mm
Gross WeightЎG3.65KG
Net WeightЎG3.02KG Certificate CE,FCC For Barebone
CE,FCC,TUV,UL,CCC,CB For Power Adapter

Type Version size Description Date Download Manual 1.0 552KB

IPC Board Manual

2008-10-10 Download Link
