G43

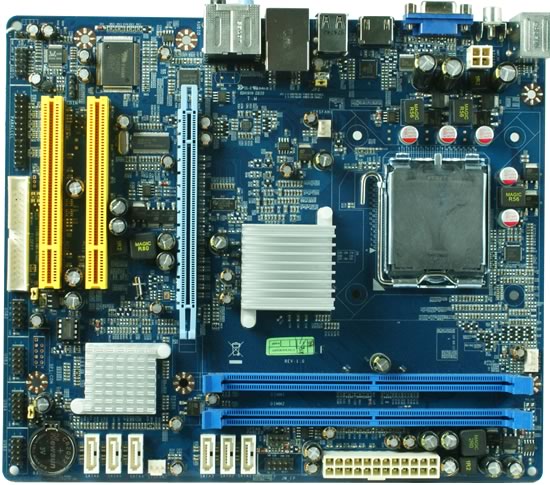

I43GM1-HG

Intel G43 Express Chipset +ICH10 CHIPSET Intel LGA775 Core2 Processor Supports PCI-Express 2.0 Integrated Intel GMA X4500 (For DX 10) Supports Dual Channel DDR2 800 Integrated Serial ATA2 3Gb/s Integrated Gigabit LAN Support Blu-ray/HD DVD playback Intel® Clear Video Technology Integrated ALC888 HD Audio CODEC with 8-Channel Ready for Windows® Vista™ Micro ATX Form Factor

LGA775 Intel Core Processor Family Supported
The Intel® Core™ processor family delivers unrivaled performance and breakthrough energy efficiency. For your extreme computing, the Intel core processor family delivers unrivaled performance and breakthrough energy efficiency, to let you enjoy revolutionary performance with vivid, high-definition experiences and multi-tasking responsiveness by state-of-the-art Intel dual-core and quad-core technologies (Core 2 Extreme, Core 2 Quad and Core 2 Duo Processors).

INTEL G43 Express Chipset and ICH10 Chipset
The Intel® G43 Express Chipset, with the next-generation Intel® Graphics Media Accelerator X4500 (Intel® GMA X4500),when combined with the Intel® Core™2 processor family, delivers new technologies and innovative capabilities for digital home consumers. With major advancements in video, graphics, responsiveness and scalability, the Intel G43 Express Chipset allows your PC to be the center of home computing, communications, and entertainment. In addition to video, the Intel G43 Express Chipset delivers optimized 3D graphics performance and support for Microsoft DirectX* 10, Shader Model* 4.0 and OpenGL* 2.0. These graphics enhancements deliver the performance and compatibility you need for entertaining everyday game play for the most popular game titles.

PCI Express 2.0 Buses
The PCI Express 2.0 x16 graphics delivers up to 8 GB/s per direction, 2 times more bandwidth than PCI Express x16 and up to 16 GB/s concurrent bandwidth. PCI Express x1 I/O offers 1GB/s concurrently, over 7 times more bandwidth than AGP8X, tackling the most demanding multimedia tasks nowadays.

Serial ATA2 3Gb/s
This platform supports reliable storage solution for enhanced data protection and data accessing performance. Serial ATA 3Gb/s is firstly introduced in this platform to provide blazingly 3Gb/s bus bandwidth thus higher disk performance.

CPU Vcore 7-Shift / Shift to the scalabilities and flexibilities
The adjustable voltage for CPU Vcore can be upgraded in plus 8 stages for the precisely hardware dynamic over-clocking of demanding computing performance.

Specification CPU Supports Intel® Core2 processors Family (Core 2 Extreme, Core 2 Quad, Core 2 Duo Processors) Chipset Intel®G43 Express Chipset + ICH10 Chipset FSB 1333MHz Memory Dual Channel DDR2 memory technology 2 * 240-pin DDR2 DIMM slots Supports DDR2 800 non-ECC ,un-buffered memory Max.8GB Expansion Slots 2 * 32-bit PCI Slots 1 * PCI Express  x16 slot by 16-lane Storage

Embedded INTEL ICH10 Chipset:

6 * Serial ATA2 3Gb/s connectors Audio Realtek ALC888 HD Audio CODEC with 8-Channel Ethernet LAN Realtek RT8111C PCI-E Gigabit LAN USB Embedded 12 * USB 2.0/1.1 Special Features Advanced Power Design that supports the latest LGA 775 Core Processor "IMAGE IT!" System Backup Software and "ProMagicPLUS!" System Recovery System Rear Panel I / O 4 * USB 2.0/1.1 ports 1 * PS/2 mouse port 1 * PS/2 keyboard port 1 * SPDIF_Out port 1 * RJ-45 port 1 * Audio I/O port 1 * VGA port 1 * HDMI port Internal I / O 4 * USB 2.0/1.1 headers for 8 USB 2.0/1.1 ports CPU / Chassis Fan connectors 1 * 4-pin ATX 12V Power connector 1 * 24-pin ATX Power connector 1 * parallel header CD / AUX Audio in 1 * Floppy connector Front panel audio connector 1 * HDMI_SPDIF header 1 * COM header 1 * IR header BIOS Award 8MB SPI Flash ROM Form Factor Micro ATX Form Factor (245 x 210mm)

BIOS
Type Version size Description Date Download BIOS A01 1MB

First release for production.

2008-10-31 Download Link

Manual
Type Version size Description Date Download Manual 1.0 588KB Manual(English) 2008-10-24 Download Link
